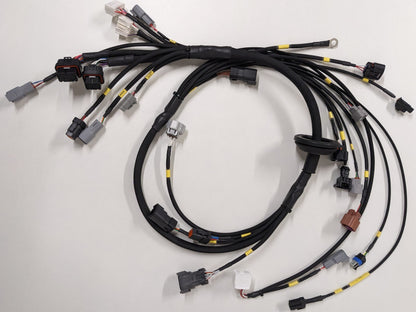

Toyota Starlet Glanza V Plug-in Wiring Loom (Harness) - 4E/5E - Haltech Nexus S2 / Elite 1500

Looking to install a Haltech Nexus S2 or Elite 1500 ECU in your 1996-1999 EP91 Toyota Starlet EP91 but unsure about wiring? Our solution: our Starlet Haltech plug-in wiring harness!

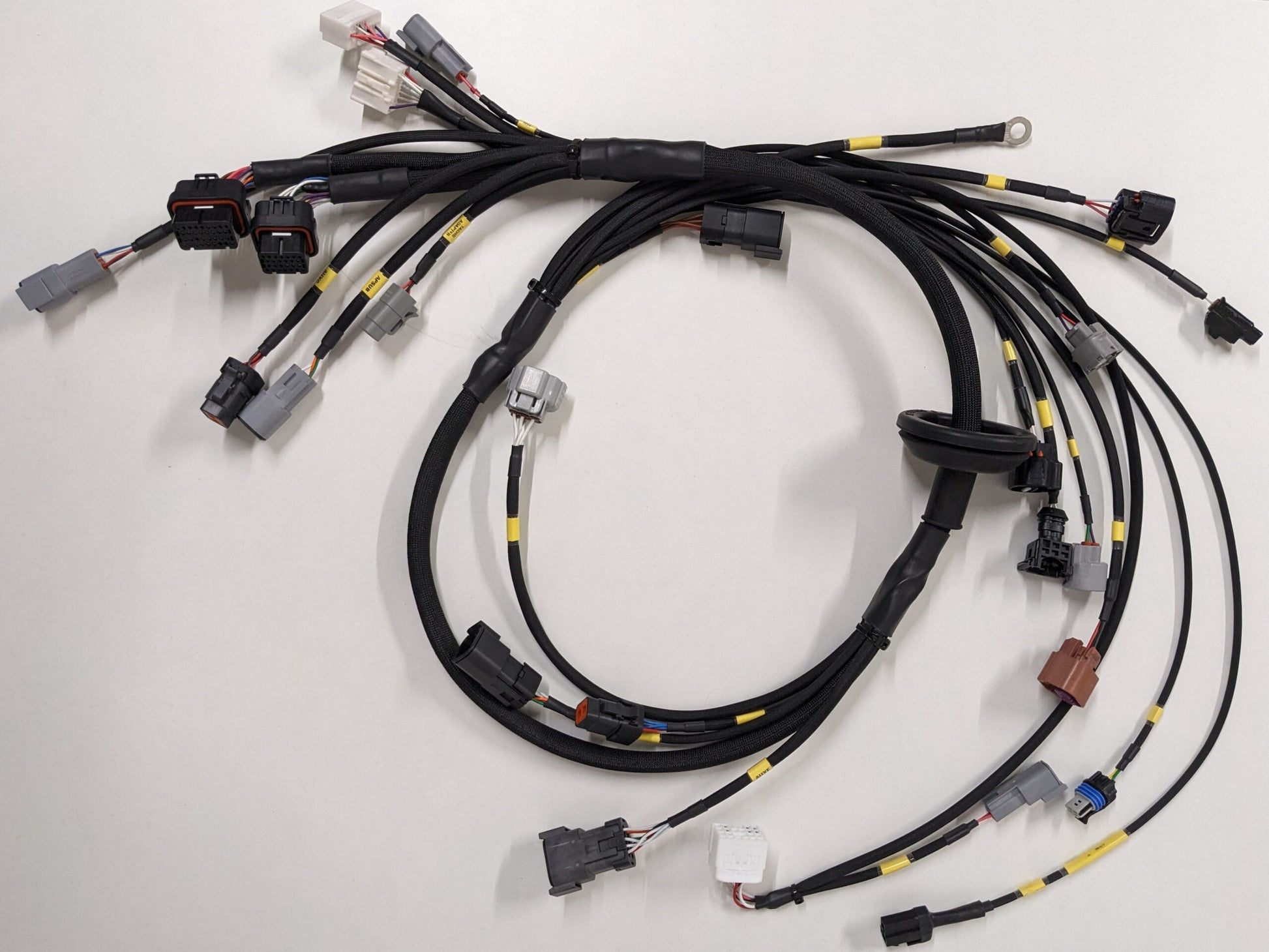

What's a plug-in wiring harness?

Unlike a patch harness, a plug-in wiring harness is a complete replacement for the engine wiring, see the diagram below for the 98/99 Glanza V, highlighted in green. This harness seamlessly connects to the engine bay fusebox and interior body connectors (1/2/3, depending on your year/country/engine). Most factory functions are retained; details on what stays and what doesn't are further explained below. The harness doesn't include a new battery cable, so you'll need to strip this from your existing wiring (check out the video at the bottom of this page for a guide). However, we're considering offering this in the future.

Is your build ever evolving? This wiring harness allows easy changes to injectors, coils, and additional features as required.

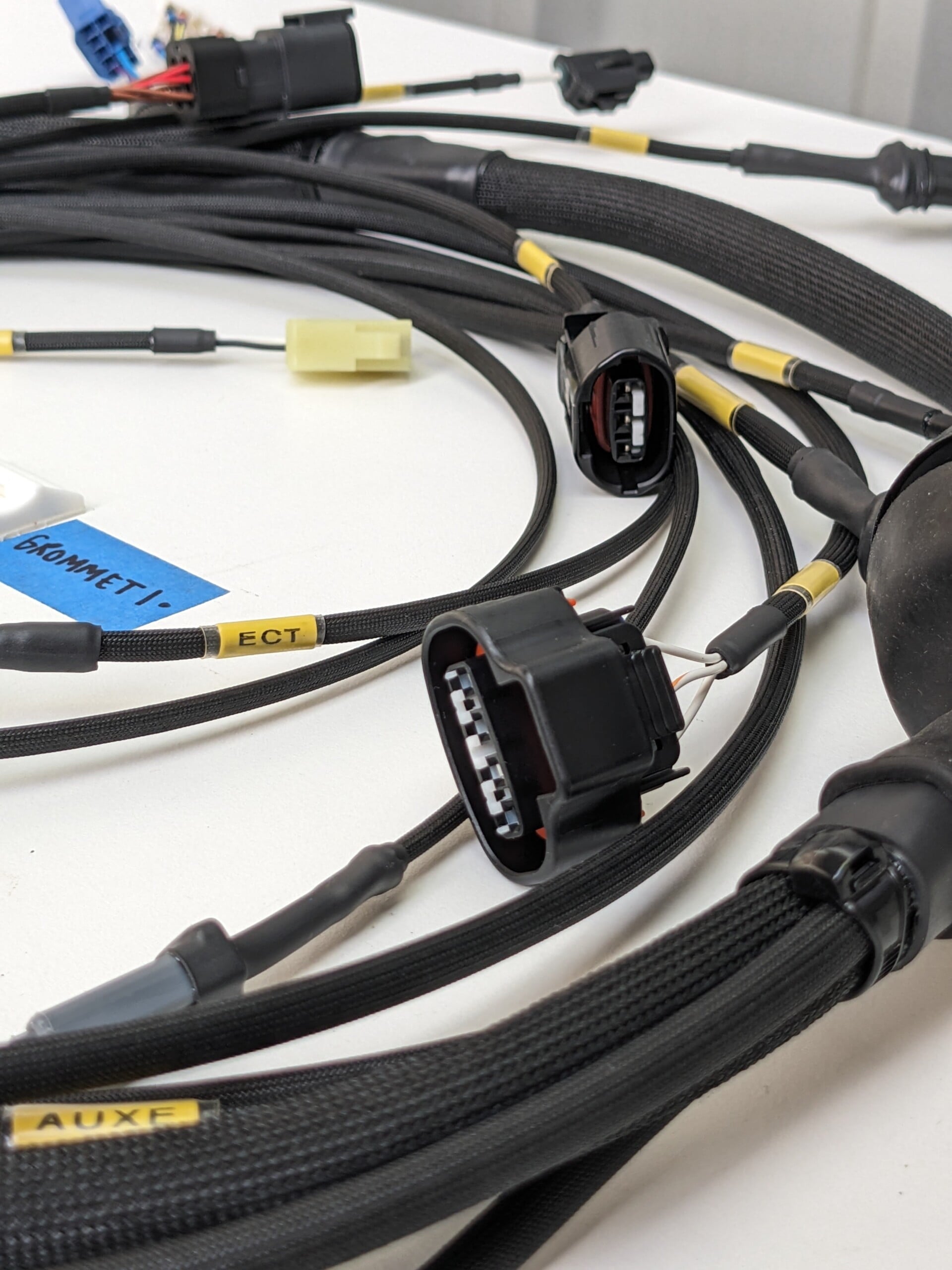

This harness uses sub harnesses with Deutsch/Amphenol DTM/ATM plugs for injectors, coils and additional features so you can change what you need to when you need to. We also supply the pinouts for these connectors so any competent wiring DIYer can make the changes themselves!

I don't see any options for fuel/oil pressure sensors or other features, can these be added?

Yes! We include 2 breakout connectors for this purpose, one in the engine bay and another in the interior. Because everyone's build is different, we decided the best approach would be a modular harness. This means everyone has the same main harness, which keeps costs low, and people can then choose to have whatever extra features they would like. To order custom additions, please get in touch!

Have questions?

Call us on +44 1475 325 091 or message us via the live chat, contact page, Instagram or Facebook. We're here to help!

Features

• Compatible with Right hand drive (RHD) EP91 models - If you have a different model then please get in touch for a quote!
• Manufactured using Tefzel (ETFE) wire - rated up to 150ºC (OEM is rated to 80ºC)
• Loom is covered using high temperature fibreglass braid- rated over 600ºC
• Injectors and Coils are on sub harasses so these can be changed in the future! Sub harnesses are available to order by contacting us or listed on the website around June 2024
• Choice of stock injector, EV14/USCAR or Bosch EV1 connectors.
• Choice of stock coil, K20 COP (coil on plug) or 2ZZ/Yaris COP.
• Choice of Drive by Wire (DBW) or cable throttle.
• Free TPS Sensor mount with non-drive by wire versions!
• The harness is modular so you can customise the additional inputs and outputs! Common options are fuel or oil pressure, flex fuel sensor, clutch switch etc... For customisations get in touch with your requirements for a quote and to order
• Made in house using production line tooling by Komax, Mecal, Rennsteig, Knipex, DMC, TE, RaceSpec, Ideal and Sargent. For ultimate reliability no cheap generic tools will be used in the construction of your wiring harness, Toyota didn't so neither will we!
• Quality control including crimp height measurement and point to point pin testing.

Technical Specs and Connectors

• Suitable for Haltech Elite 1500 or Nexus S2 ECU's (please get in touch if you have a different ECU for a custom order)
• Triggering - Stock 4E-FTE cam/distributor sensor (Crank Trigger can be added on as a custom change - please contact us)
• Intake Air Temp Sensor - Bosch 2 wire sensor connector - Sensor not included
• Coolant Sensor (ECT) - Bosch 2 wire or OEM Toyota 3 wire - Sensor not included
• Optional Drive By Wire for Bosch 54mm Throttle body (other sizes available, let us know as the pinout changes)
• Optional Electronic Accelerator Pedal wiring on DBW versions - GT86/BRZ pedal connector
• Cable Throttle versions - Throttle Position (TPS) - EP Wiring Bosch TPS mount kit included! - Bosch 0 280 122 001 (0280122001) variable throttle position sensor not included
• Injectors - Choice of Stock Toyota (aka Denso style), Bosch EV14/USCAR (ID 1050X, EV14 etc) or Bosch EV1 (Junior Power Timer)
• Coils - Choice of Factory 4E-FTE Coil and Ignitor, K20 Coil on Plug or 2ZZ/Yaris Coil on Plug - Custom coils available just ask! - Coil packs not included
• Ground Ring Terminals for Coils, AUX, CAN and ECU
• Knock Sensor Wiring for Bosch 0261231006 - Sensor not included
• Boost Control Solenoid wiring wired in as factory (MAC solenoid) - Solenoid not included - direct plugin option can be ordered from here!
• Engine Bay AUX connector (12V+ Power, Ground, 5V+ Sensor Supply, Sensor Ground and spare inputs/outputs)
• Cabin AUX connector (12V+ Power, Ground, 5V+ Sensor Supply, Sensor Ground and spare inputs/outputs)
• CAN Plug next to ECU wired to suit Haltech products such as WB1 Lambda - Pins can be rearranged DIY to suit LinkECU/other devices.
• OEM Check Engine Light
• Tacho Adapter plug for stock gauge cluster - Just plugin a Haltech Tacho Output Adaptor
• Oil pressure light by OEM switch - If using oil pressure sensor on AUX plug you can wire the ECU to the Oil pressure light - ask for this in the order comments
• OEM Boost Switch
• Alternator wiring
• OEM fan switch - 98-99 cars only
• Brake fluid level connector
• Fuel Pump relay trigger from ECU output
• Speed Sensor Signal from Stock Gauge Cluster - If you are using a digital dash this will not work
• Windscreen wiper wiring

Not included but required for fitment:

• ECU mount - To make your life easier we made ECU mounting plates and they are FREE with every Haltech Elite 1500 or Nexus S2 ECU purchase - UK ONLY.
• DBW versions require throttle body mount and pedal mount - We sell these here
• DBW versions require Electronic Throttle Body - more info here
• DBW versions require Electronic Accelerator Pedal from BRZ/GT86 - More info here

OEM parts not used:

• ABS - Some or all parts of ABS may no longer work
• AC Vac solenoids - AC may still work but please ask to confirm
• Stock idle valve
• Diagnostics port
• Battery power and ground cables - Original ones must be stripped from original wiring.

To see the install process watch the video of a similar install but with heat shrink covering rather than braid

https://www.youtube.com/watch?v=6TxAhOQTZ0o
