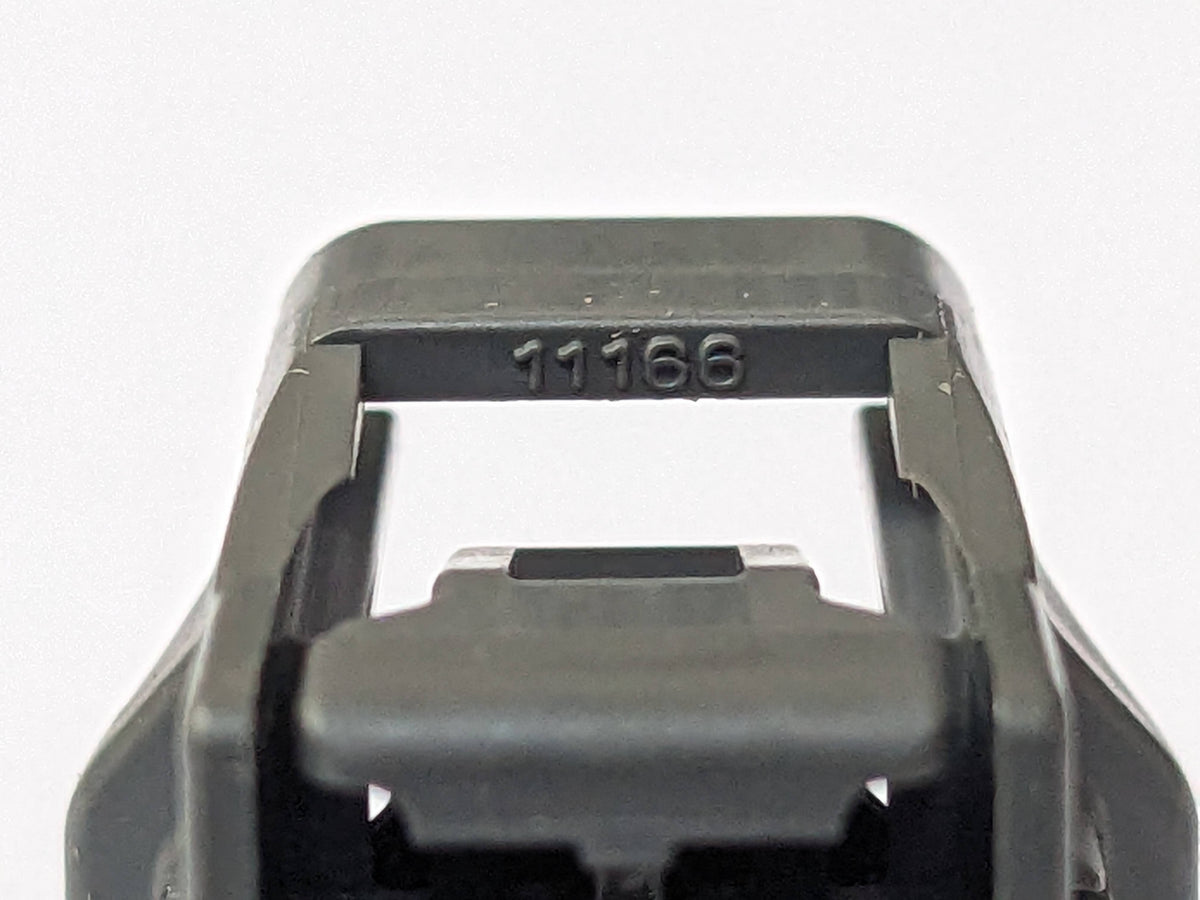

Toyota Knock Connector 90980-11166 (4E-FTE and 2JZ / 1JZ)

Toyota 90980-11166 - Genuine Yazaki 090 II sealed 2 way connector.

Available as a kit or a pigtail

• Fits Toyota 2JZ / 1JZ Knock sensor
• Fits Toyota Starlet EP82/EP91 4E-FTE Knock sensor
• Fits Toyota Starlet EP91 radiator fan switch
• May also fit EP82 rad fan switch but may not
• May also fit 1UZ, 1UZFE 1UZ-FE, LS300, LS400, GS300, 3SGE, 3SGTE, 4AGE

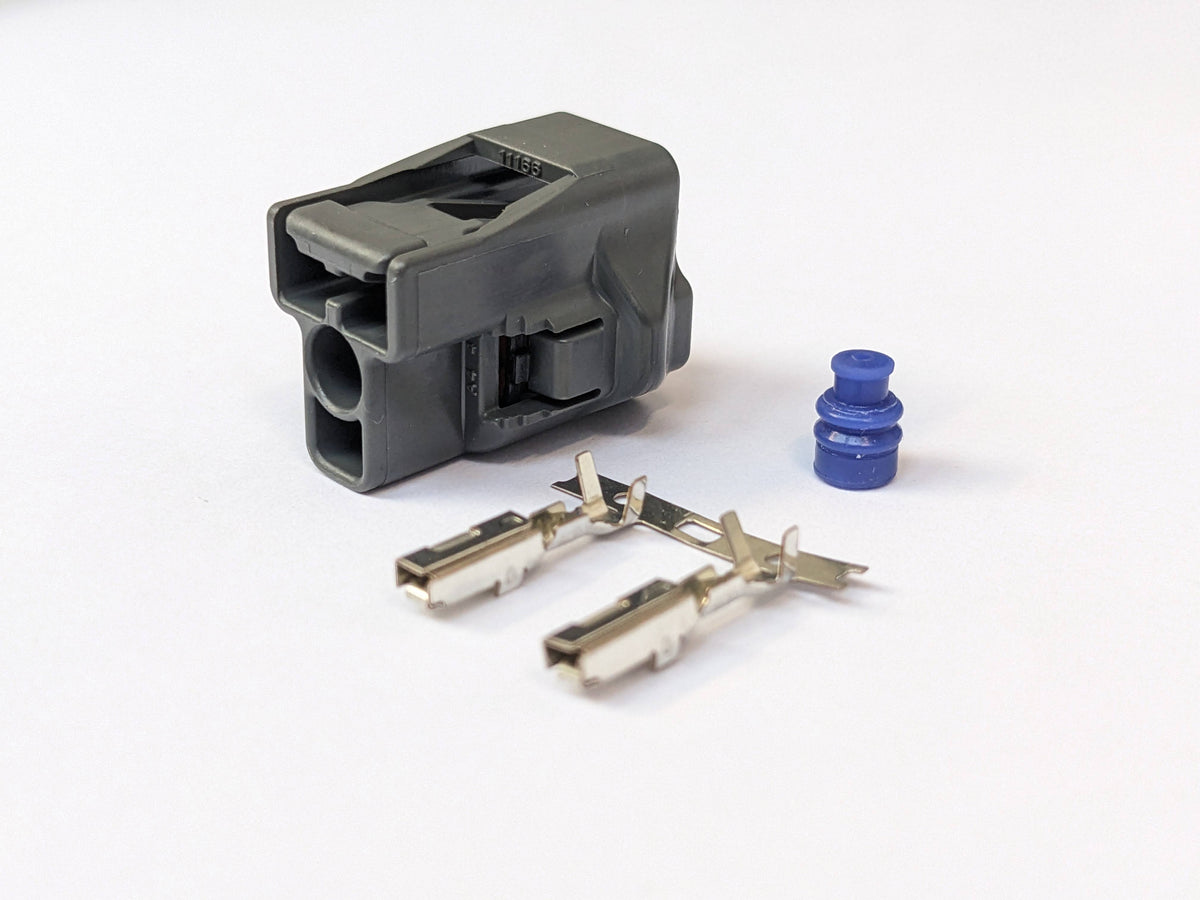

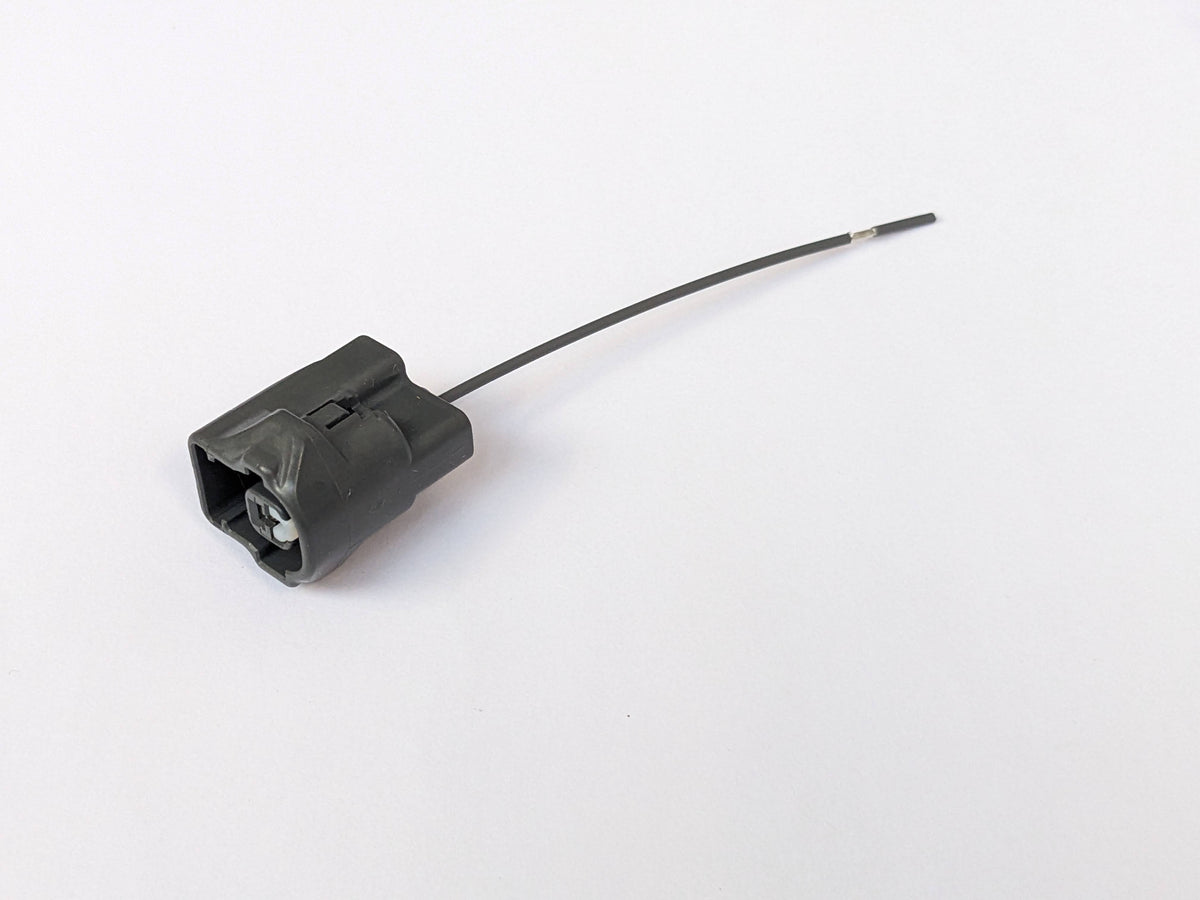

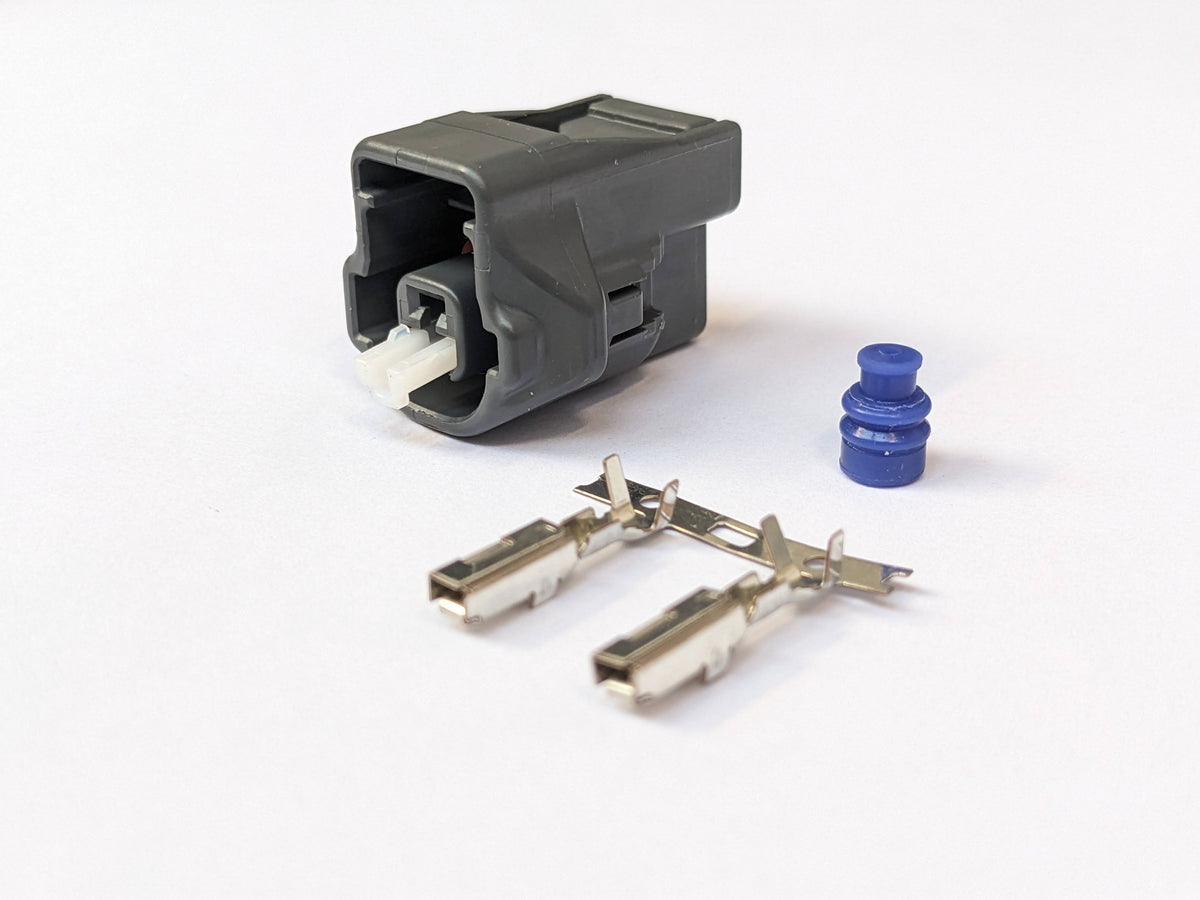

Kit comes with 2 terminals and a seal, pigtail comes with 100 mm of wire. If joining to OEM Knock sensor wiring the pigtail must be as short as possible as this is a shielded wire sensor.

• Wire size: 0.3-0.5 mm² | 22-20 AWG (Terminal Part Number: Yazaki 7116-4025)
• Insulation/Seal size: 1.4-1.8 mm (Wire Seal Part Number: Yazaki 7158-3006-90)
• Crimp tool recommendation:
  • Rennsteig 624 1673 3 012 RT Die Set
  • Sargent 3305 MPCT - E jaws for terminal.
  • Sargent 3306 MPCT - 1 Jaws for wire seal.
