Toyota Crank Sensor Connector - 4E-FE / 5E / Others
Toyota Crank Sensor Connector - 4E-FE / 5E / Others
Regular price
£8.00 GBP
Regular price
£8.00 GBP
Sale price
£8.00 GBP
Unit price
per
Taxes included.
Low stock: 2 left
Couldn't load pickup availability
EP Wiring Technical Information

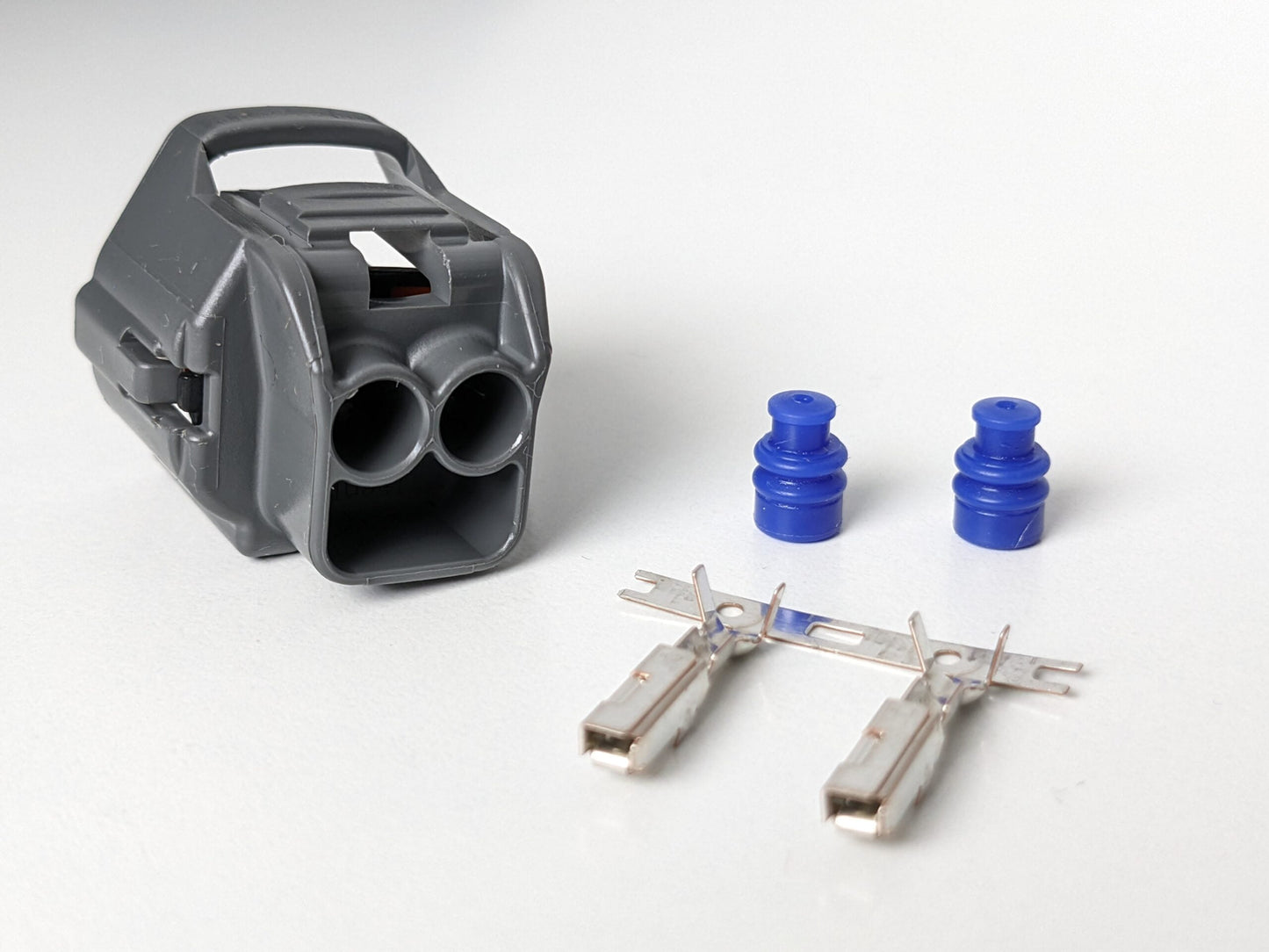

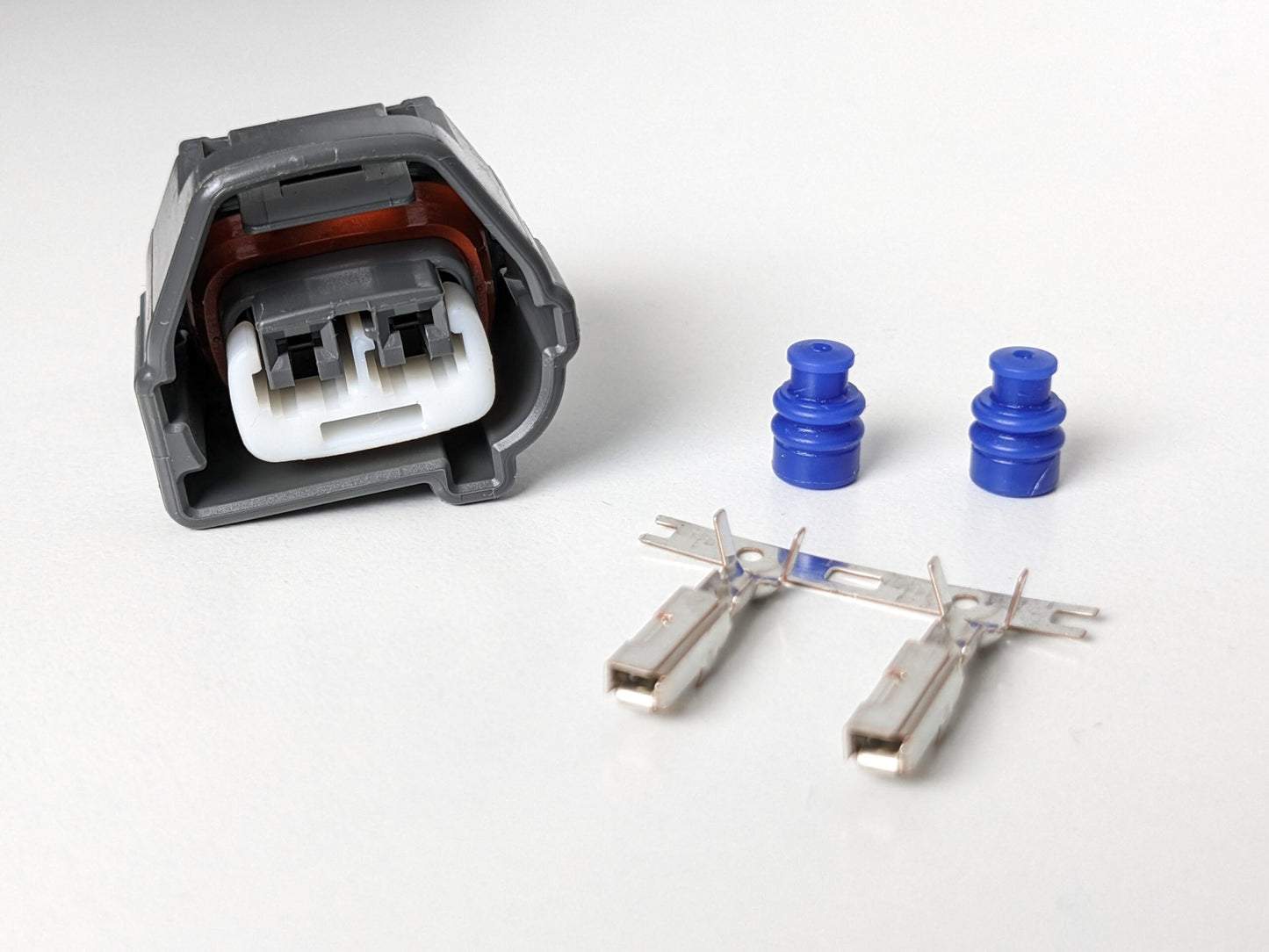

Toyota 90980-10899 – Genuine Yazaki 090 II sealed 2 way connector suitable for late model Toyota Starlet EP91 4E-FE / 5E engine crank sensors. People often retro fit the late model 4E-FE/5E oil pump with the crank sensor port, sensor and crank trigger pulley to their 4E-FTE engines.
- Wire size: 0.3-0.5 mm² | 22-20 AWG (Terminal Part Number: Yazaki 7116-4025)
- Insulation/Seal size: 1.4-1.8 mm (Wire Seal Part Number: Yazaki 7158-3006-90)
- Crimp tool recommendation:
- Rennsteig 624 1673 3 012 RT Die Set – Terminal and Seal
- Sargent 3305 MPCT – E Jaws for terminal.
- Sargent 3306 MPCT – 1 Jaws for wire seal.
