Toyota 4E-FTE Ignitor Connector Kit (90980-11232)

Custom Wiring and DIY Kits — Built for Your Car, Your Way.

Whether you want to build it yourself — or have it professionally built — we can help

  • Toyota 4E-FTE Ignitor Connector Kit (90980-11232)-EP Wiring-EP Wiring
1 1

EP Wiring Technical Information

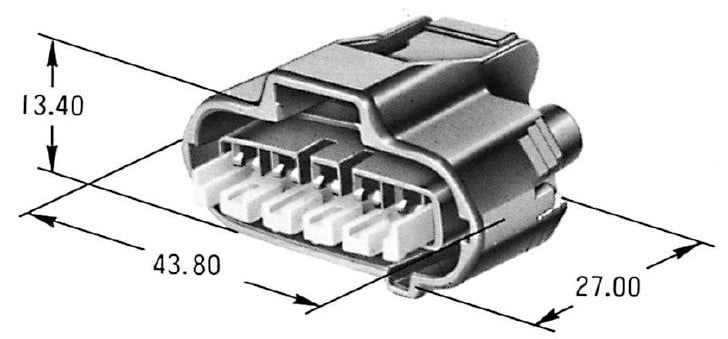

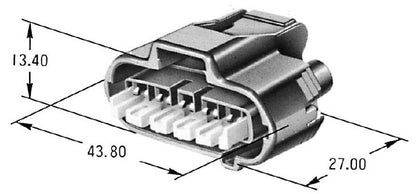

5-Way Toyota 4E-FTE Ignitor Connector kit for Toyota 4E-FTE engines. This is a Genuine Yazaki connector, the same used by Toyota, not a cheap copy.

Toyota Part Number: 90980-11232

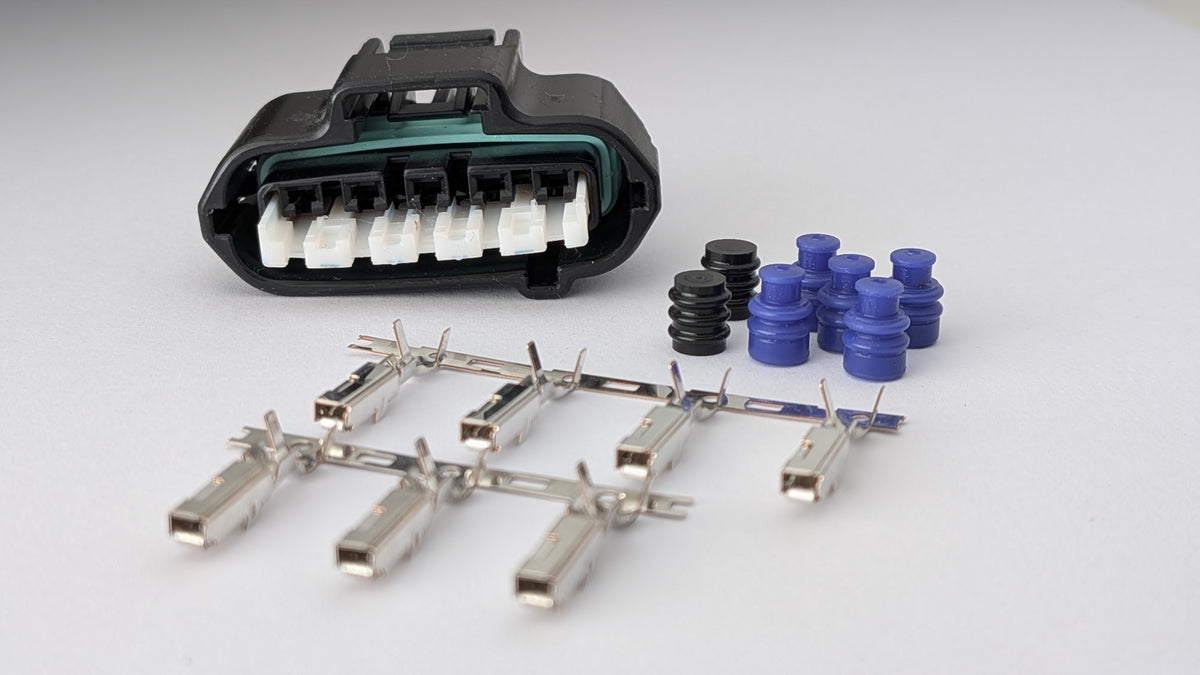

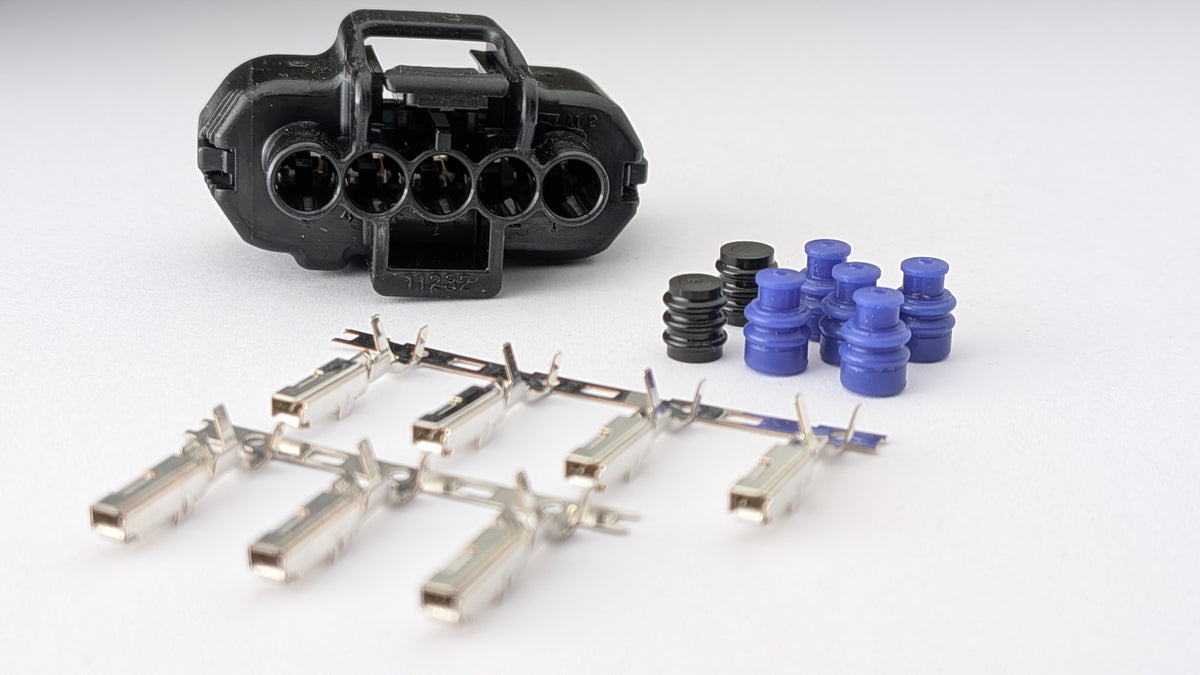

  • 1X Connector Body – Toyota Part Number 90980-11232
  • 4X Terminals: 0.3-0.5 mm² | 22-20 AWG (Part Number: Yazaki 7116-4025)
  • 3X Terminals: 0.85-1.25 mm² | 18-16 AWG (Part Number: Yazaki 7116-4026)
  • 3X Wire seals: Insulation size: 1.4-1.8 mm (Part Number: Yazaki 7158-3006-90)
  • 2X Wire seals: Insulation size: 2-2.2 mm (Part Number: Yazaki 7158-3007-10)
  • 1X dummy plug
  • Crimp tool recommendation:
    • Rennsteig 624 1673 3 012 RT Die Set – Terminal and Seal
    • Sargent 3305 MPCT – See Sargent Terminal Repair manual for jaw settings for wire and terminals
    • Sargent 3306 MPCT – 1 Jaws for wire seal.

4E-FTE Ignitor (Ignition Module) Pinout Diagram

Pin Description
1 Ignition Feedback - Not required for standalone ECU (IGF)
2 Ignition Signal from ECU (IGT) - Link ECU Connector A - Pin 13
3 Ignition switched 12V+ Power (15amp AM2 fuse) (B+)
4 High side output to drive tachometer (TACH)
5 Goes to Ignition Coil - Pin 2 (C-)

Looking into the front of the connector. (Wires on opposite side)
