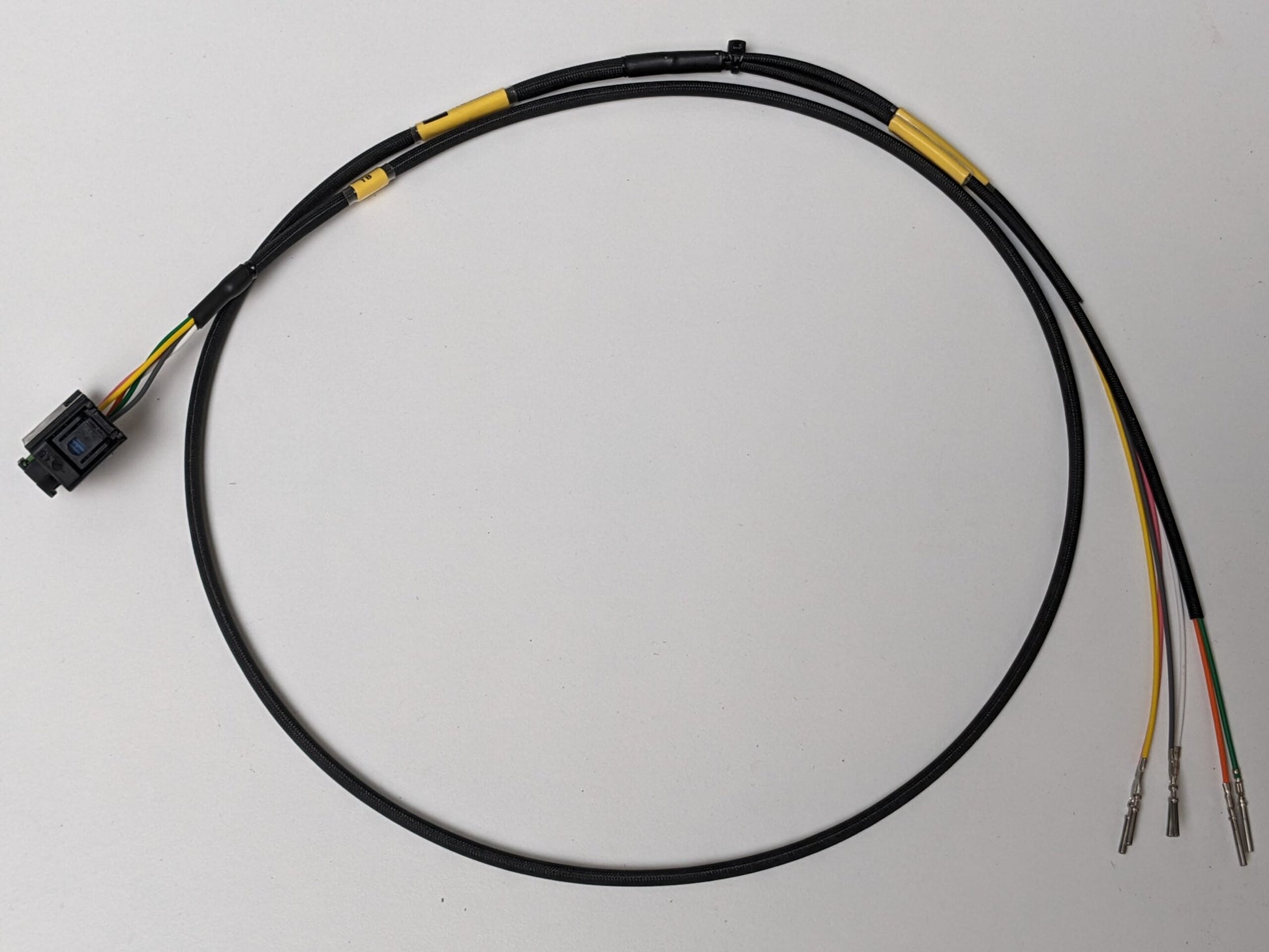

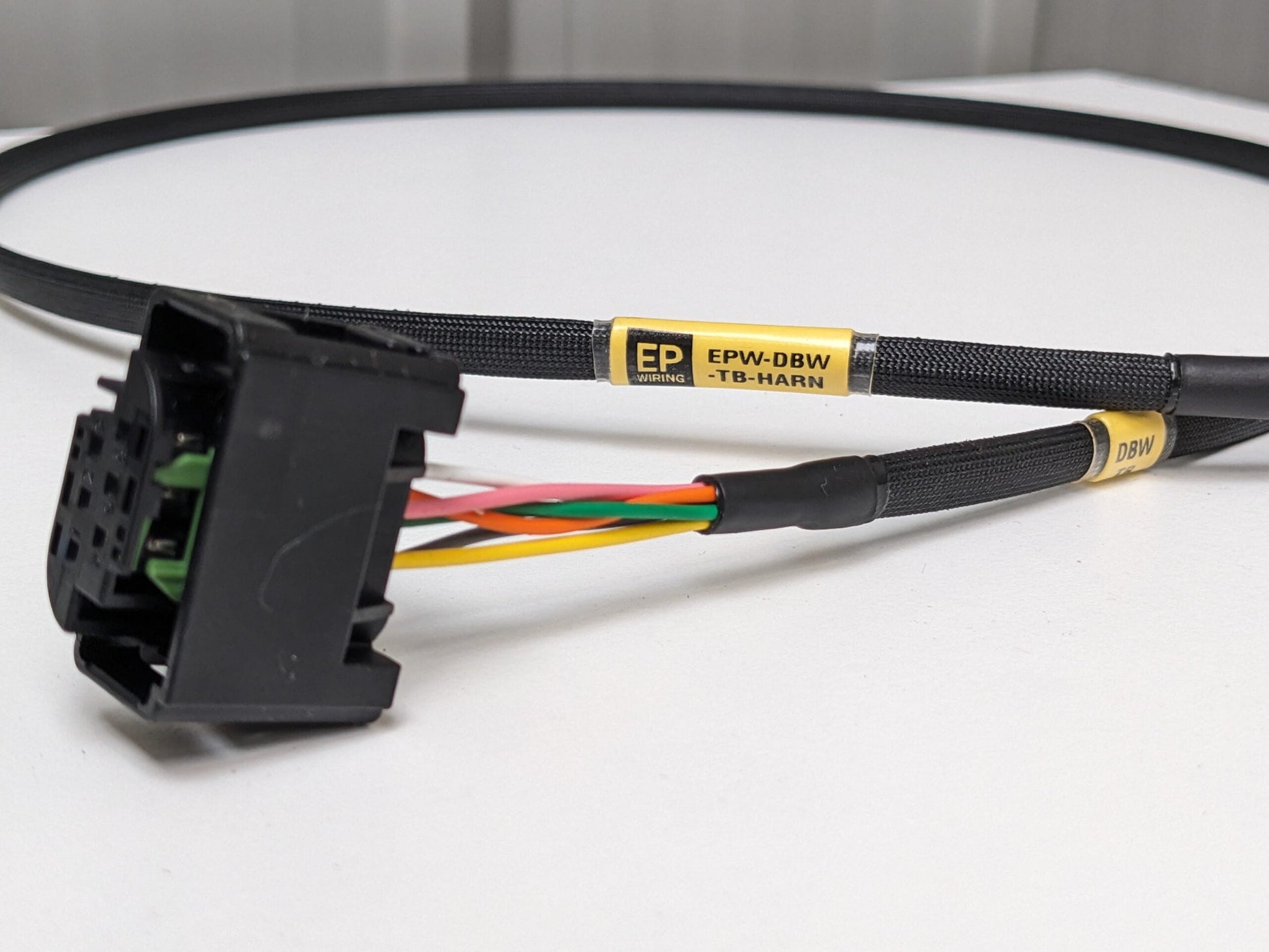

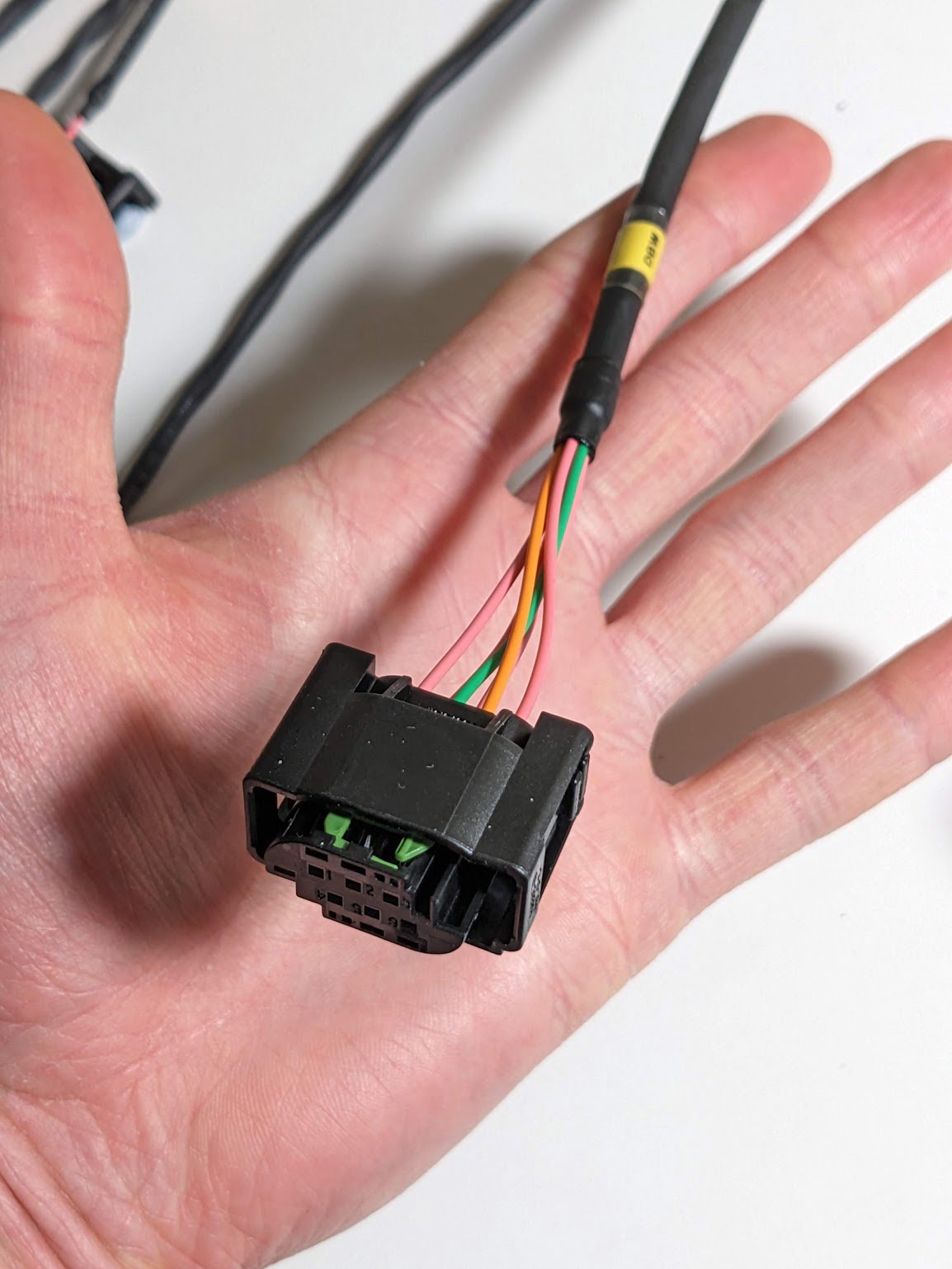

DBW Throttle Body (e-throttle) Wiring Sub Harness to connect your ECU to your Bosch 44mm / 54mm / 60mm / 68mm / 74mm / 82mm Electronic Throttle Body. ECU pins or unterminated wire on one end and the DBW Throttle Body connector on the other.
TE Spec 44 20 AWG wire rated to 150 degrees C - Motorsport grade wire, dual layer insulation
Covered with TechFlex Insultherm or DR-25 heat shrink
Superseal 1.0 terminals crimped with Mecal/TE Press and Mecal Applicator (£6000+ factory equipment)
Crimped with production quality Rennsteig PEW 12 frame and die set (£430+ tool)

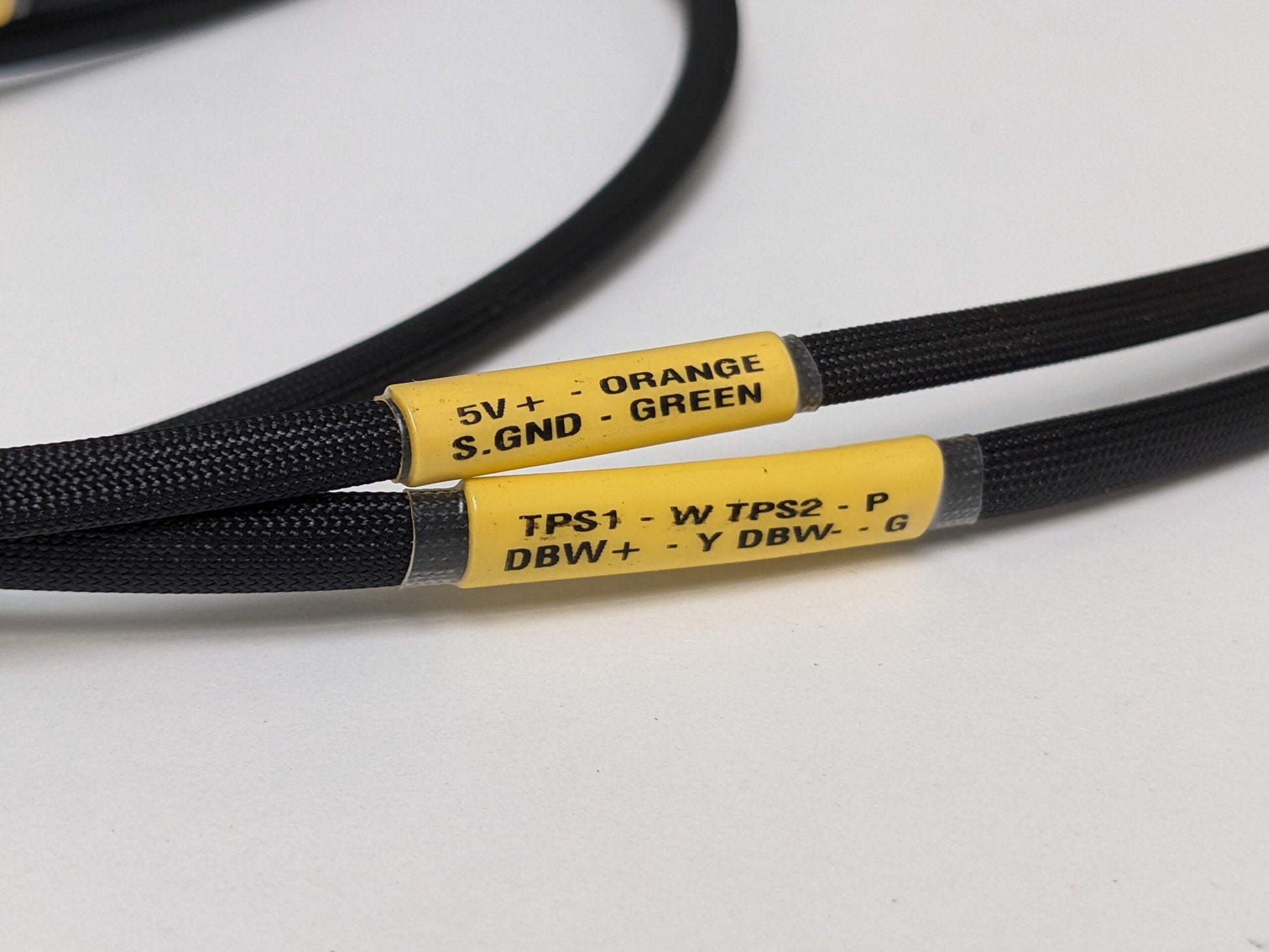

You may need to splice in your own sensor supply (5V+) and sensor ground wires or these can be terminated to DTM/DT pins/sockets. Put a note in the order comments or contact me for requirements.
ECU pins available - Superseal 1.0 (Link, Haltech, Motec, Emtron, Syvecs, DTA, ECU Master PRO) / None - Unterminated wire - leave an order note with instructions.
Harness length of 1.2m. Custom lengths available on request. Perfectly suited for RHD EP82/EP91 Starlet's with ECU mounted in standard location.
This product is made to order - We aim to ship within 1 week but may take longer. If you're on a tight schedule please contact us before ordering for an accurate timeline.
