GT86 / BRZ Electronic Accelerator Pedal Connector Kit

GT86 / BRZ Electronic Accelerator Pedal Connector Kit

£7.50 GBP
£7.50 GBP £7.50 GBP
Sale Sold out
Taxes included.

Low stock: 5 left

EP Wiring Technical Information

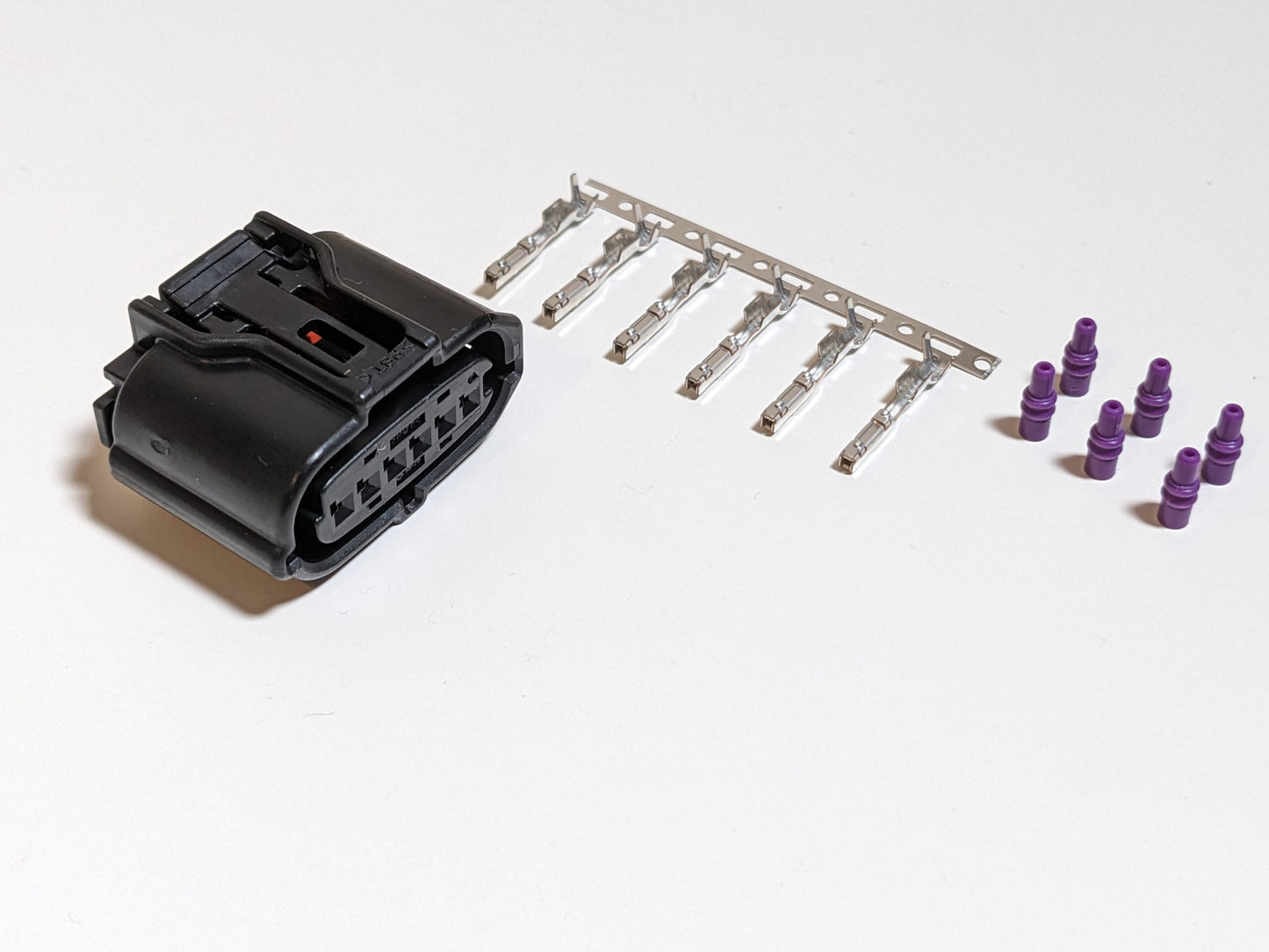

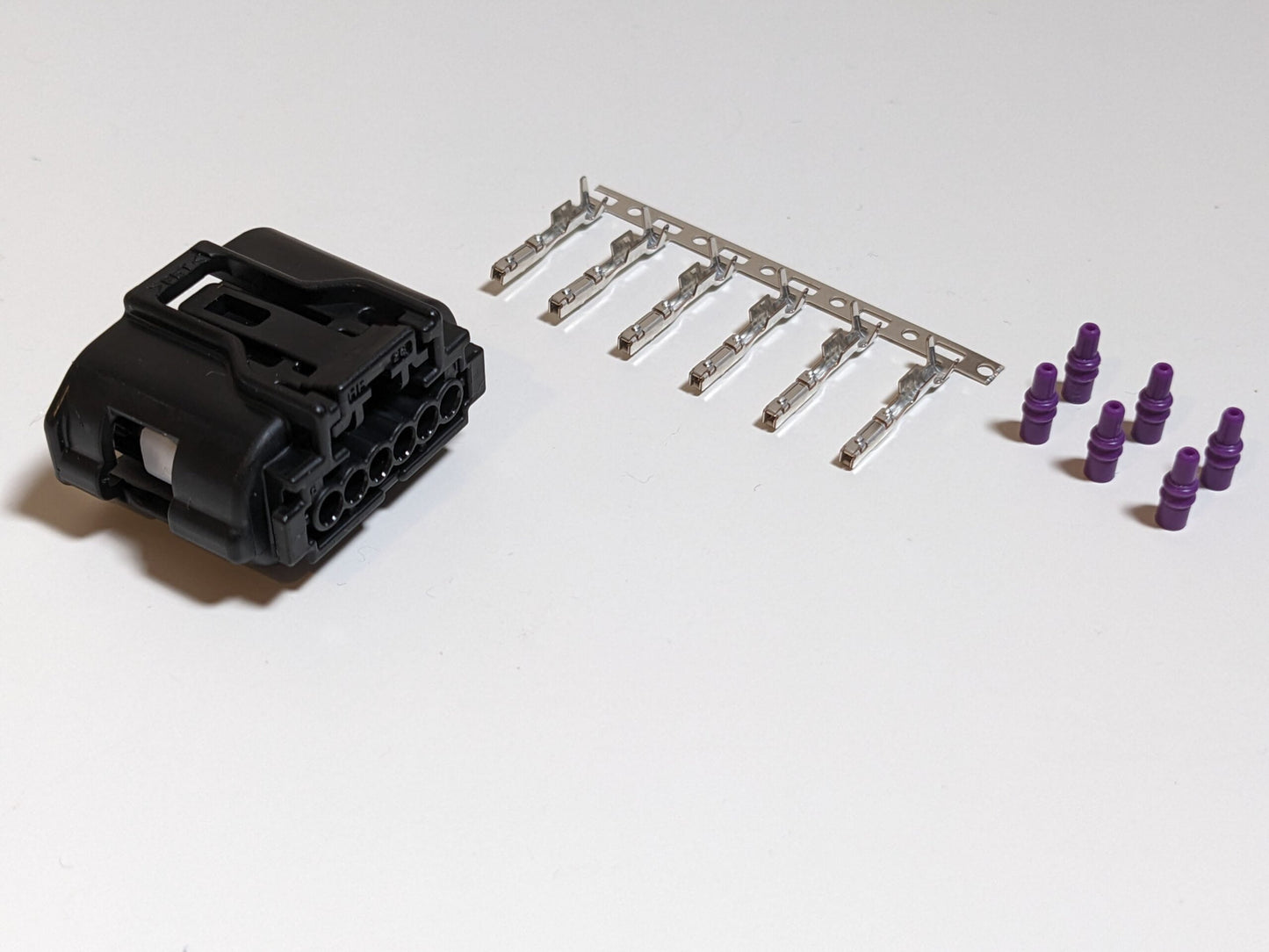

Genuine Sumitomo TS 025 sealed 6 way connector suitable for Toyota GT86 / Subaru BRZ accelerator pedal.

  • 1x Connector Body
  • 7x Terminals (1 Spare)
  • 6x Wire Seals Suitable for 1.4-1.5mm diameter insulation (20 AWG Spec 44 - Sumitomo part number 7165-1198)
  • Terminals suit 20 AWG / 0.5mm2 wire (Sumitomo part number 8240-0287)

Pinout

  1. VC2 - Sensor Supply (5v+)
  2. GND2 - Sensor Ground
  3. VPA2 - Sensor Signal 2
  4. VC1 - Sensor Supply (5v+)
  5. GND1 - Sensor Ground
  6. VPA1 - Sensor Signal 1
View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
F
Faris

Perfect for the pedal and also crimps the tails to save you the headache of not getting a secure crimp !!
