CANChecked MCE18 - Can Bus Extension Module

Not stocked item, ordered directly from supplier, please allow additional time for delivery

You are probably wondering what MCE18 stands for? It stands for Multifunction Can Bus Extension - but what is this module needed for?

The MCE18 is the optimal solution if you only have a limited number of inputs. It's particularly popular with customers who have the DBW module on Link Monsoon ECU's as DBW uses all 4 of the analog inputs.

Tested with the following devices:

• CANchecked MFD28/MFD32/MFD32S

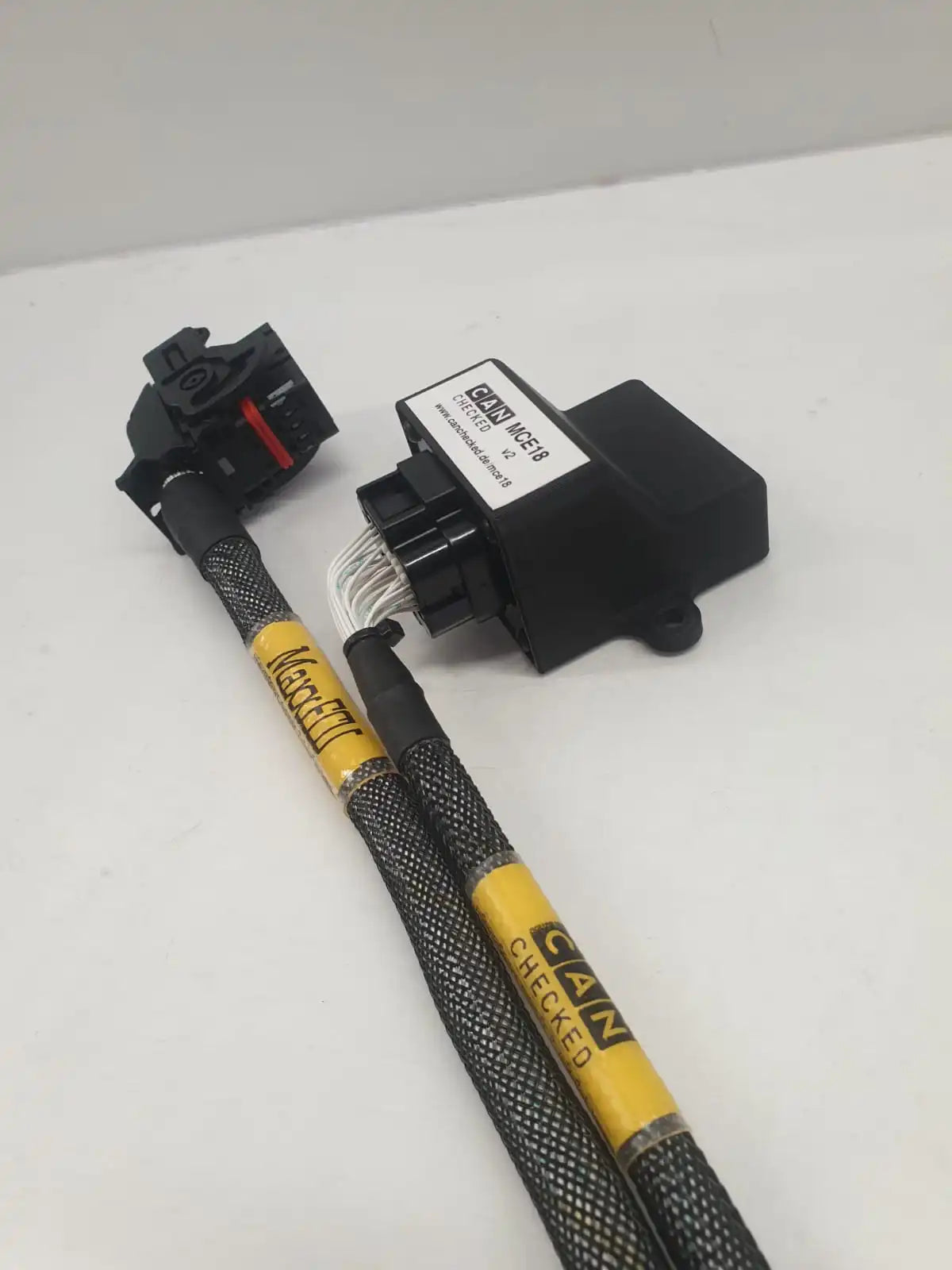

• MaxxECU (MaxxECU save file and instructions available)
• Ecumaster (emulates Switchboard V3)
• LinkECU (can streams available for import)
• Haltech (emulates an IO Extender A+B or only A or B)
• Motec (emulates an E888 – 2 pieces also possible!)
• AIM

The MCE18 features:

• 9 analog inputs (0-5V)
• 8 digital inputs (on/off)
• 3 digital outputs (on/off LOW SIDE 0.5A)
• 4 frequency inputs (turbo speed or Hall sensor (wheel speed); one input is reconfigured for this purpose)
• One frequency input usable for ethanol (ethanol content and ethanol temperature)

Comes with

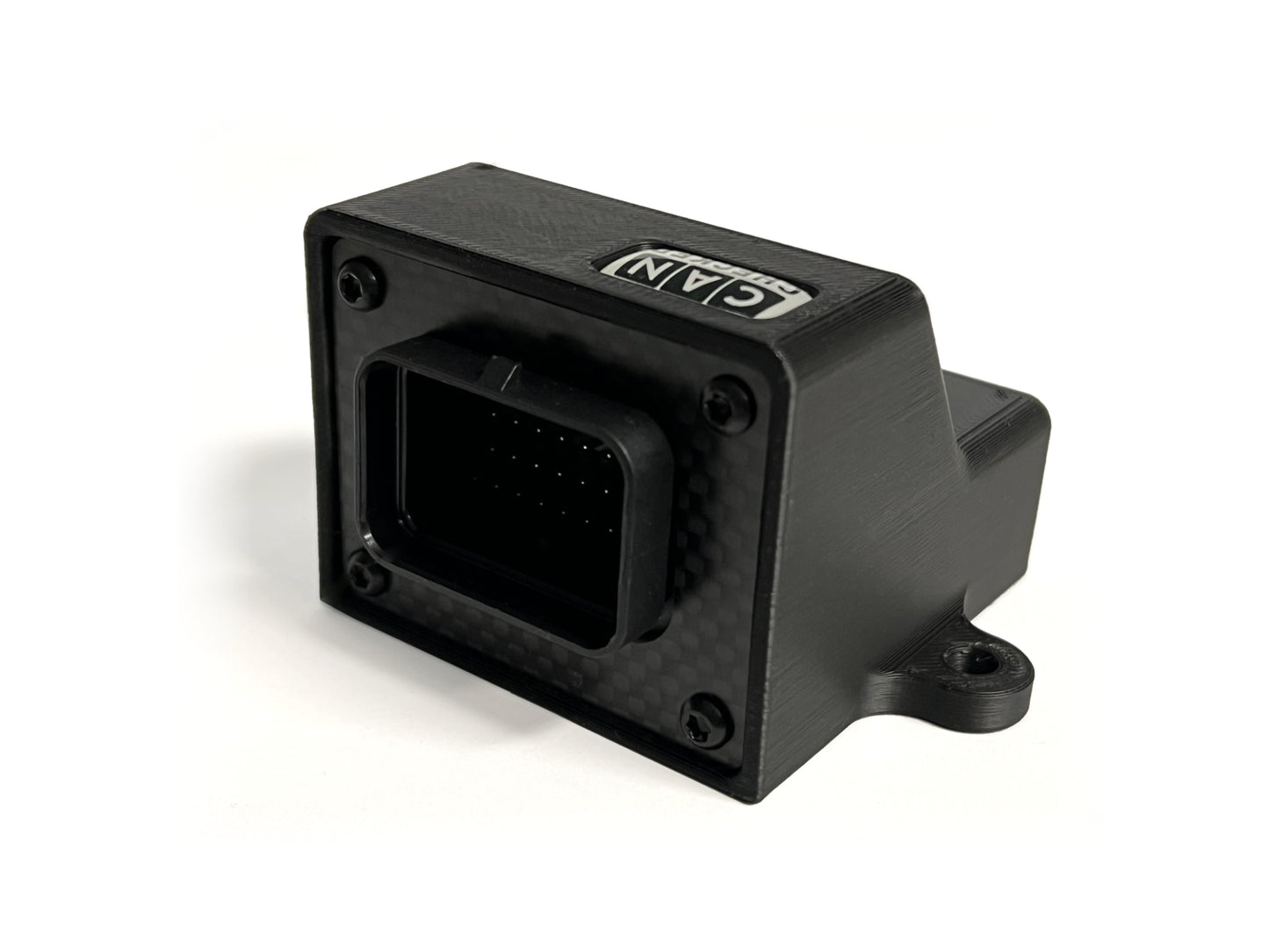

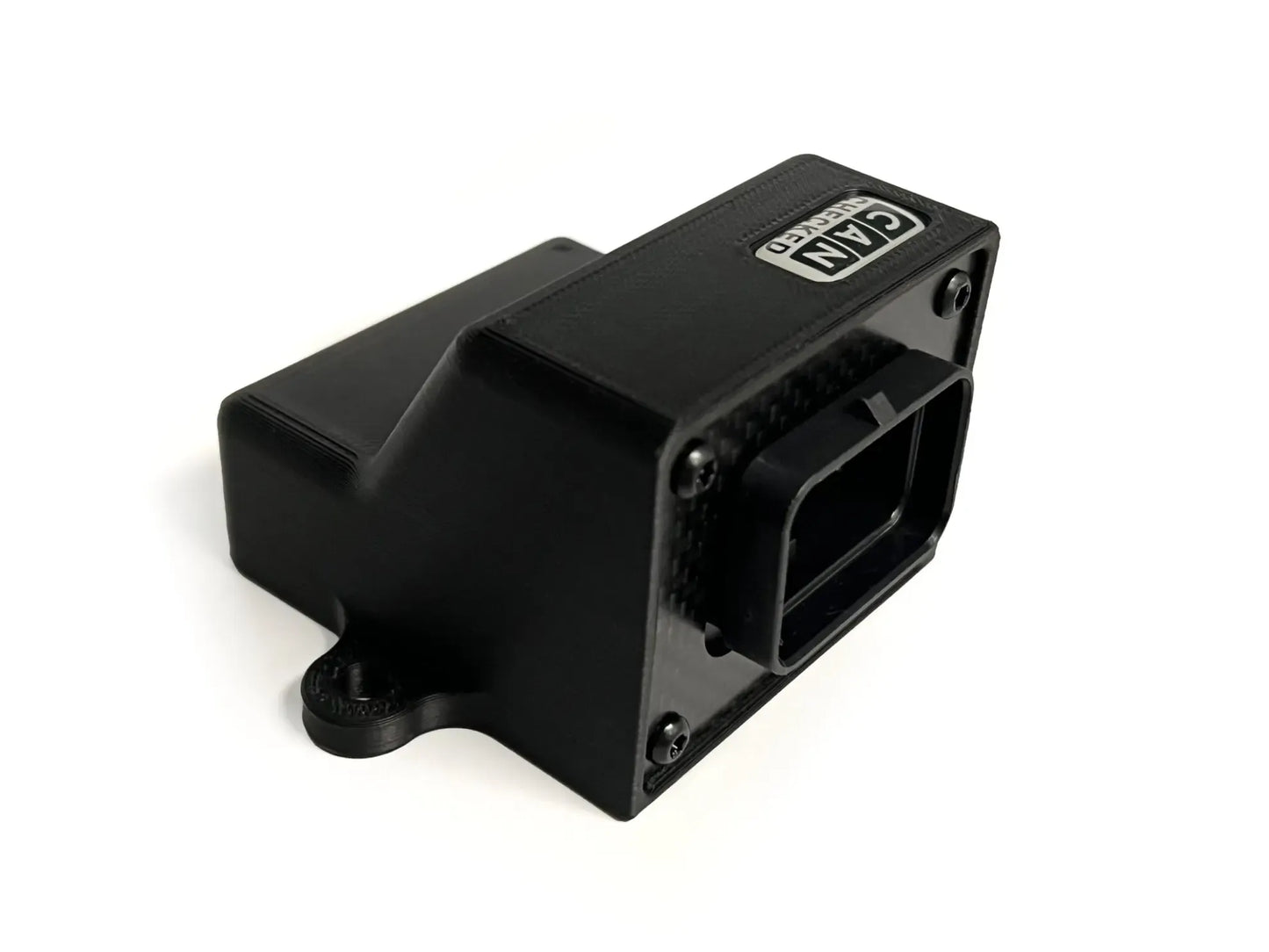

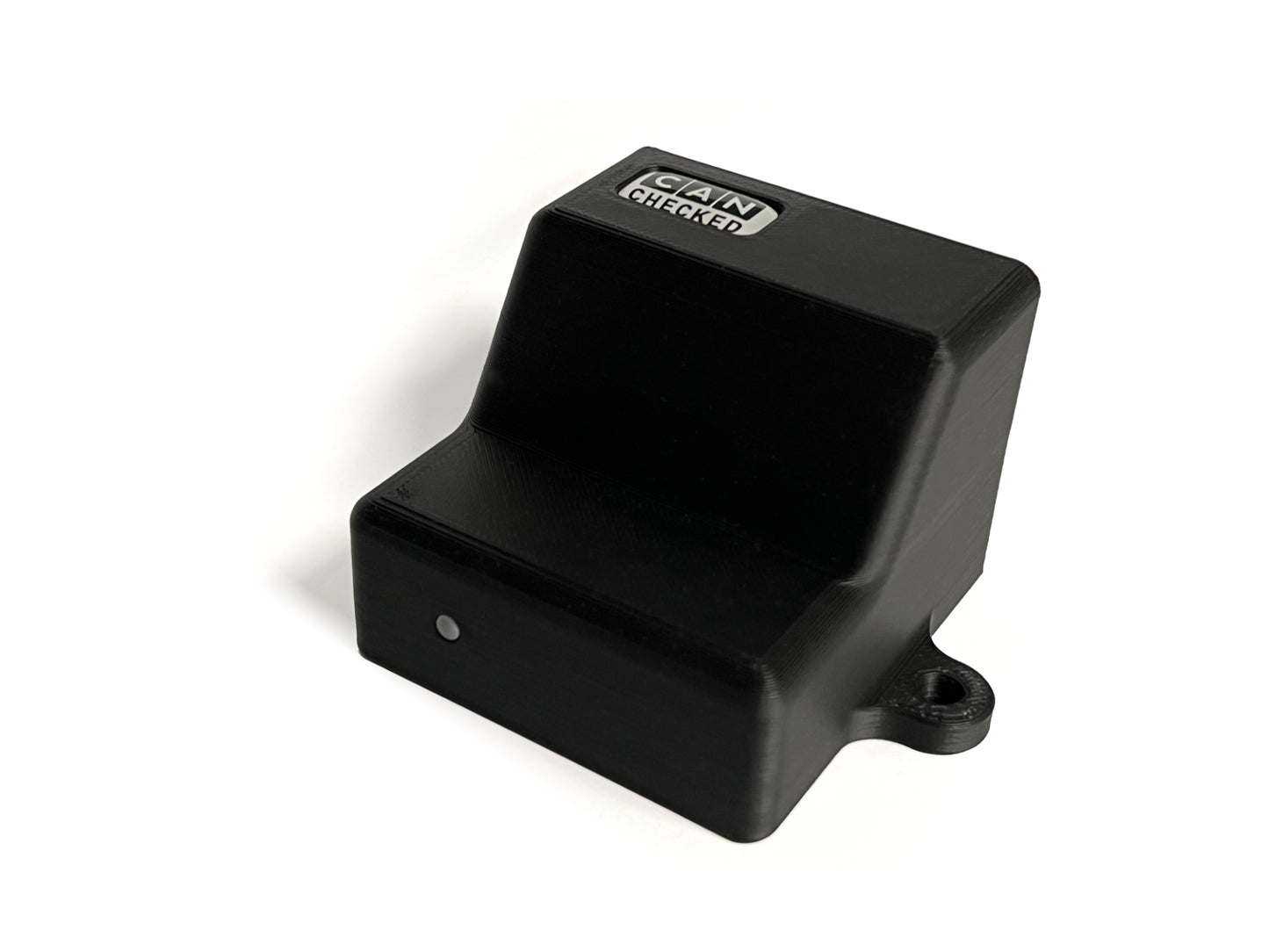

• MCE18 with housing
• Connector superseal 34pin (TE 4-1437290-0)
• Pins superseal 1.0 20AWG (TE 3-1447221-4)
• 3 jumpers

All tools, downloads and the manual in both German and English can be found in the CANChecked Help section:
