CANChecked MCE18 - Can Bus Extension Module

What does MCE18 stand for? Multifunction Can Bus Extension - but what does the module do?

The MCE18 is the optimal solution if you only have a limited number of inputs. It's particularly popular with customers who have the DBW module on Link G4X Monsoon ECU's as DBW uses all 4 of the analog inputs on this particular ECU.

Tested with the following devices:

• CANchecked MFD28/MFD32/MFD32S
• MaxxECU (MaxxECU save file and instructions available)
• Ecumaster (emulates Switchboard V3)
• LinkECU (can streams available for import)
• Haltech (emulates an IO Extender A+B or only A or B)
• Motec (emulates an E888 – 2 pieces also possible!)
• AIM

The MCE18 features:

• 9 analog inputs (0-5V)
• 8 digital inputs (on/off)
• 3 digital outputs (on/off LOW SIDE 0.5A)
• 4 frequency inputs (turbo speed or Hall sensor (wheel speed); one input is reconfigured for this purpose)
• One frequency input usable for ethanol (ethanol content and ethanol temperature)

Comes with

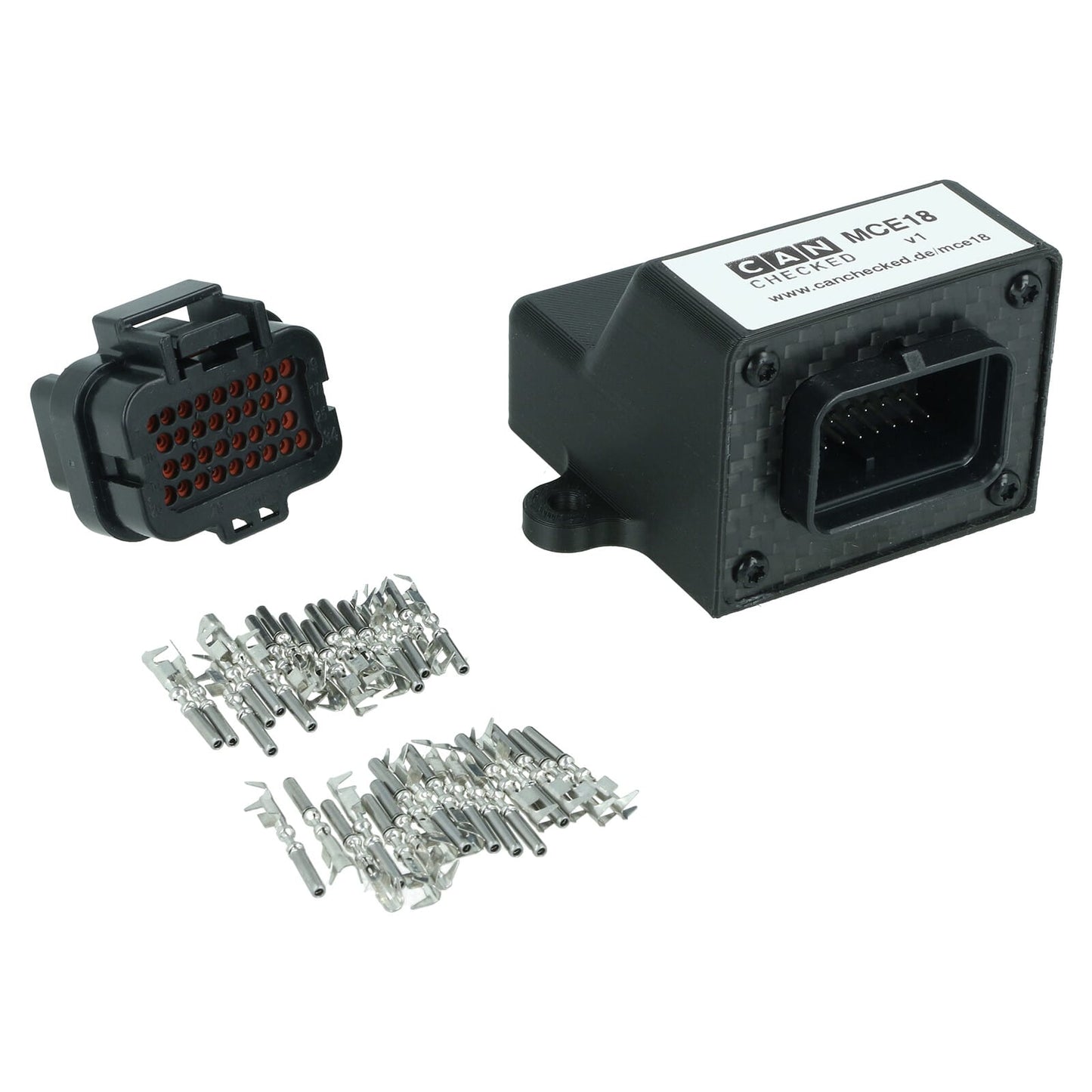

• MCE18 with housing
• Connector superseal 34pin (TE 4-1437290-0)
• Pins superseal 1.0 20AWG (TE 3-1447221-4)
• 3 jumpers

All tools, downloads and the manual in both German and English can be found in the CANChecked Help section:
MCE18 – MULTIFUNCTION CAN BUS EXTENSION
