Set of 4 K20 Coil Connectors
Set of 4 K20 Coil Connectors
No reviews
Regular price
$38.00 USD
Regular price
$38.00 USD
Sale price
$38.00 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
Sumitomo Technical Information

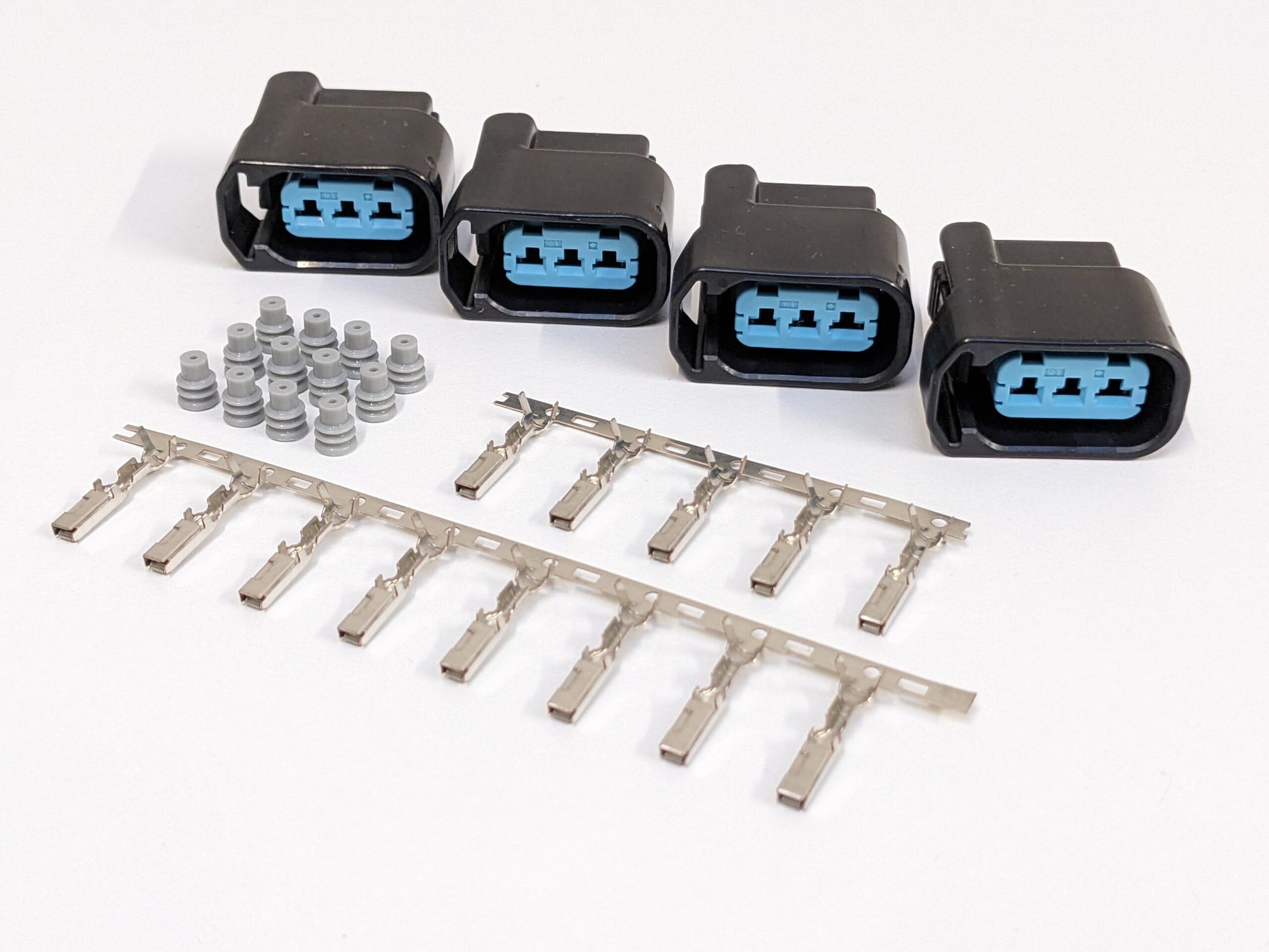

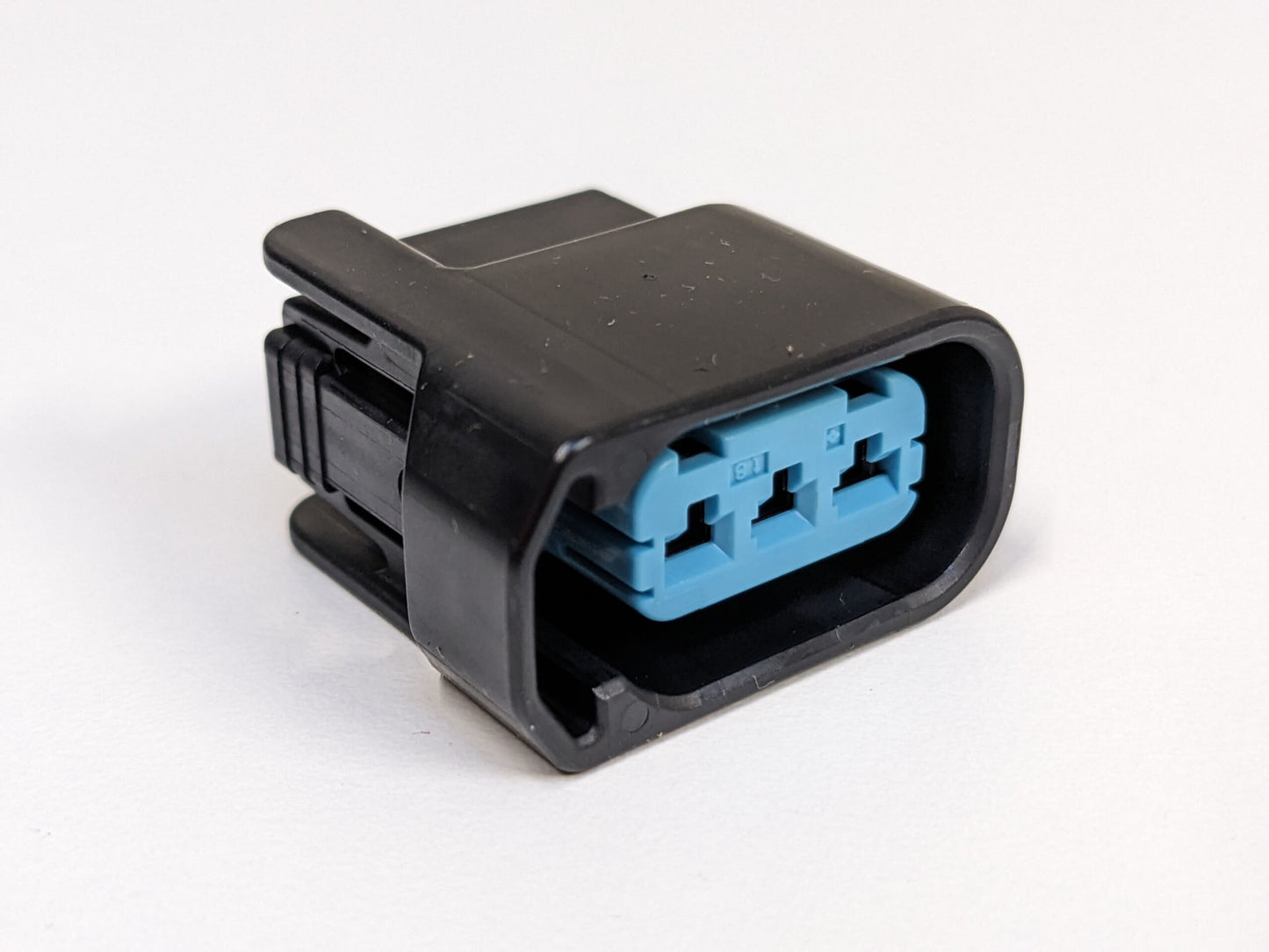

Set of 4 K20 Coil Connectors. Genuine Sumitomo HX 090 sealed 3 way connector kits, commonly used on Honda K20 Ignition Coils. These connectors are 100% genuine, see the photos where you can see the Sumitomo logo at the front of the terminal locks. There are many fakes in the UK and in the past I personally tried many of them but they are all brittle and often the clips snap on first use! As the saying goes, buy cheap, buy twice.

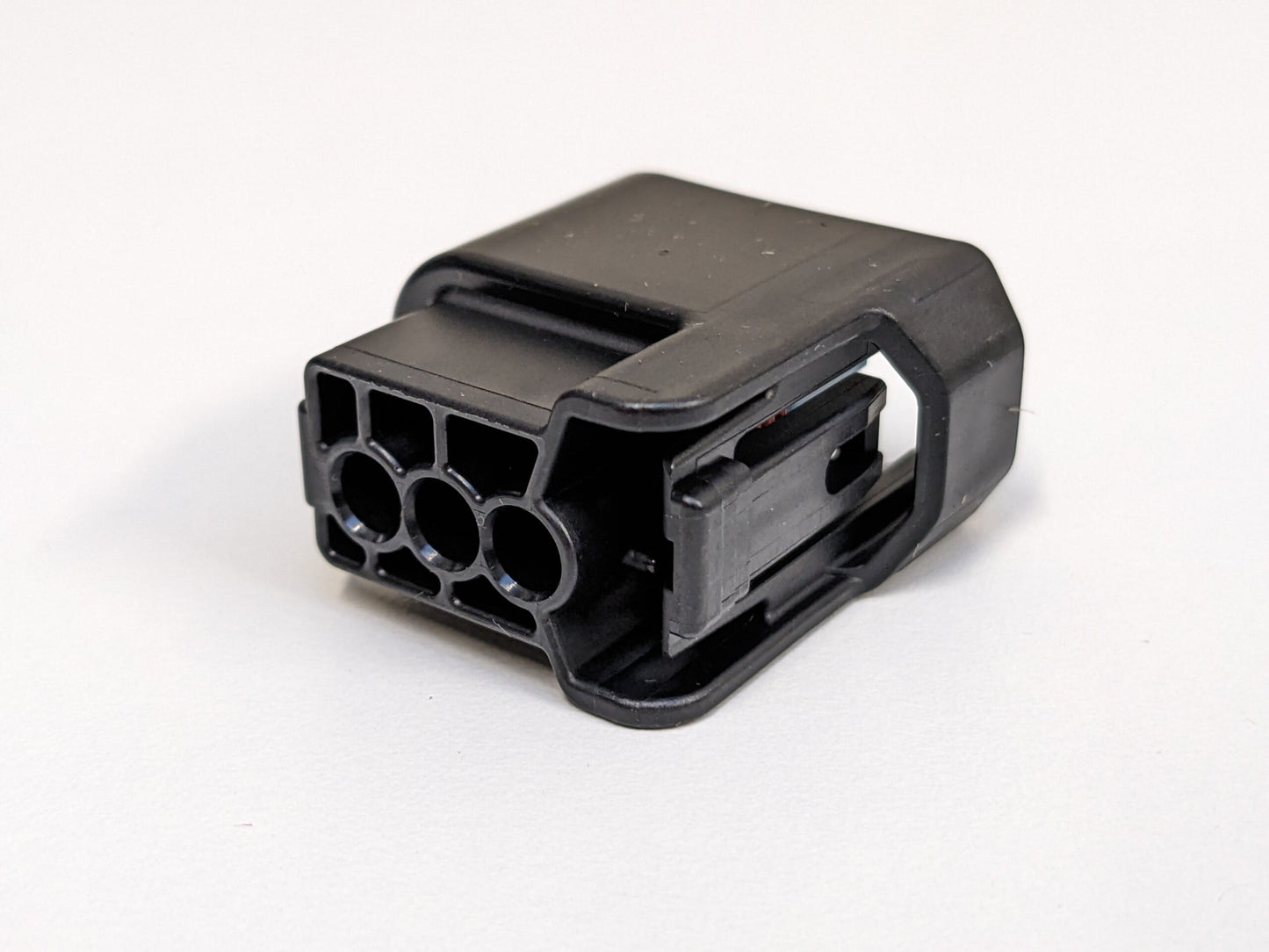

- 4X - Connector housings (Sumitomo 6189-0728)
- 12X - Wire seals - Insulation size: 1.1-1.4 mm (Wire Seal Part Number: Sumitomo 8100-1427)
- 14X - Terminals (22-20 AWG) (two extra provided) Wire size: 0.3-0.5 mm² | 22-20 AWG (Terminal Part Number: Sumitomo 7165-0385)
- Crimp tool recommendation:
- Rennsteig 624 1673 3 012 RT Die Set - Terminal and Seal - This is technically not for this terminal but if you remove the terminal locator it does a really good job.
- Sargent 3305 MPCT - E Jaws for terminal.
- Sargent 3306 MPCT - 1 Jaws for wire seal.
