The New Link ECU G5 Voodoo Neo 4 & 6 ECU's are Here!

The New Link ECU G5 Voodoo Neo 4 & 6 ECU's are Here!

Get the first look at the newest additions to the G5 Voodoo range, launching tomorrow Friday, July 11.

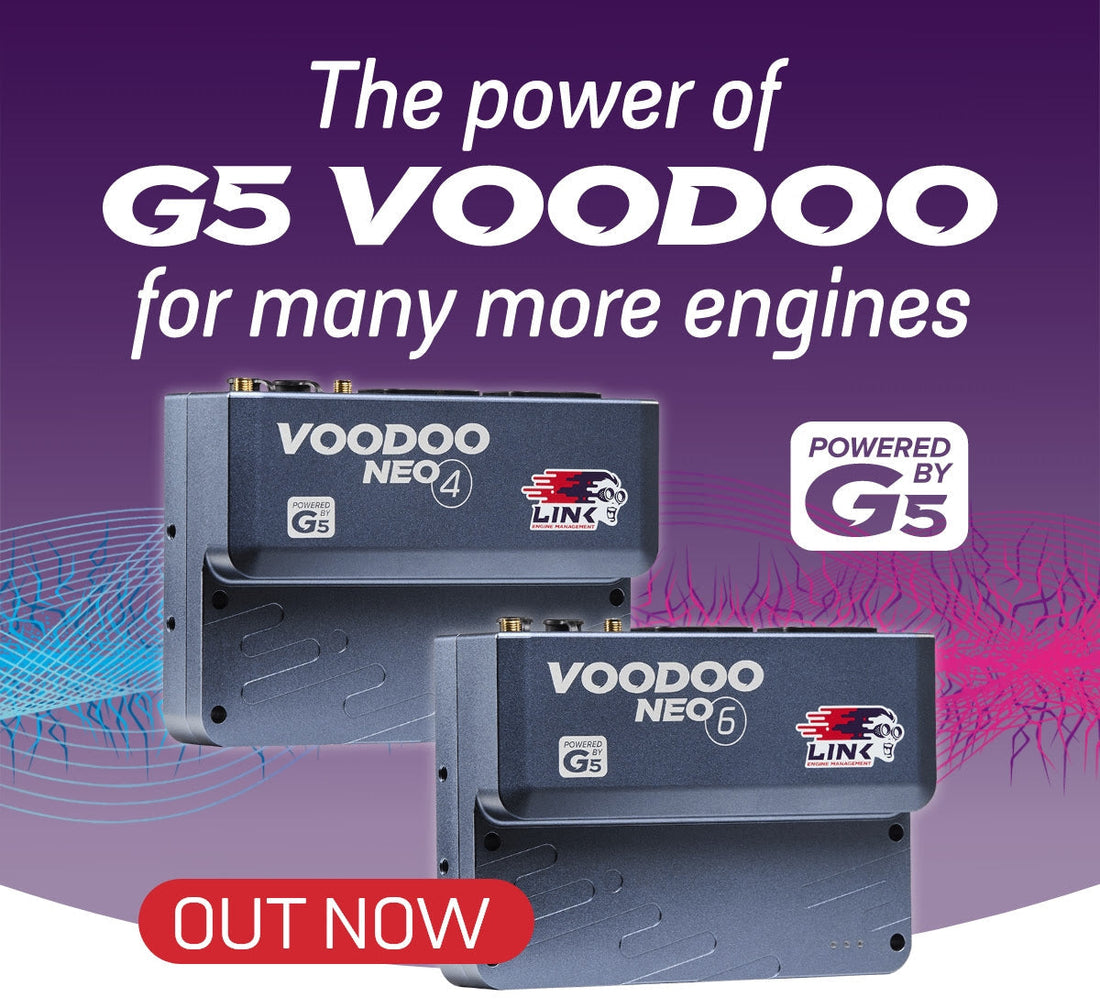

Available in two versions, the G5 Voodoo Neo brings all the motorsport and engine management features of the G5 Voodoo Pro to a wide range of 4, 6 and 8 cylinder engines and applications, with a focus on speed and flexibility, and making direct injection more accessible than ever.

Specifications

The G5 Voodoo Neo comes in two versions, with options to suit a wide range of engines.

The G5 Voodoo Neo 4 can run:

  • 6 cylinders port or direct injection and direct spark, or
  • 4 cylinders with direct/port staged injection, and direct spark.

Part Number: 154-5000

The G5 Voodoo Neo 6 can run:

  • 8 cylinders port or direct injection and direct spark, or
  • 6 cylinders with direct/port staged injection, and direct spark.

Part Number: 156-5000

Direct Injection (DI) requires an external OEM or aftermarket DI Driver box, such as Link's DI Driver-4.

Highlights for both Neo ECUs include:

  • An all new communications module: 10x faster USB speeds (download logs in mere seconds), Ethernet, and enhanced Wi-Fi.
  • Highly customisable IO, using 3 types of multi purpose pins:
    ADIO pins, Injector/Digital-Input and Aux/Digital-Input.
  • 1GB onboard of logging memory, double that of other Link ECUs.
  • Dual on-board E-throttle, with H-bridges that now natively support things like modern e-wastegates or e-blow off valves.
  • A cost-effective solution to opening up the world of Direct Injection.
  • High accuracy, high frequency GPS allows you to log position, ground speed and UTC time.
  • 1 onboard digital wideband.
  • Configurable Analogue Temp inputs, with two different pull up resistor values (1kΩ and 10 kΩ) , allowing more types of sensors to be used.
  • Analogue Temp pull-ups can be disabled now, allowing Analogue Temps to be used as regular Analogue Volt inputs.
  • Uses identical A and B connectors to the G4X which are pinned very closely.
  • CNC Case, Sealed enclosure.

The G5 Voodoo Neo header with 68 pins superseal connectors (Link A and B), GPS, USB-C, Wi-Fi, Ethernet and CAN.

Huge time and flexibility gains on Install:

  • You can now power via the USB cable, just like the Razor PDM, making setting up the initial tune a breeze at your PC.
  • More mounting options than ever before, with through holes, and threaded mount holes on the side and underneath.
  • New WEIPU CAN connector supplies power for CAN devices, massively simplifying CAN wiring and accessory installation.
  • Highly customisable IO, with multi-use pins to maximize utilisation.
  • Similar pinouts to G4X, allowing upgrades with minimal repinning.

Dive Deeper with the Knowledge Base

Take a deep dive into the G5 Voodoo Neo using the LinkECU Knowledge Base, packed with detailed technical resources, including:

  • What's New With Neo?
  • Quick Start Guide / Installer Table
  • Dimensions / CAD Files
  • Technical Specifications
  • Mounting Guide
  • Pinouts

Both G5 Voodoo Neo ECUs run on Link's up-to-date PCLink software, always free to download (meaning there's no money-grabbing extras to get our full performance and motorsports package).
